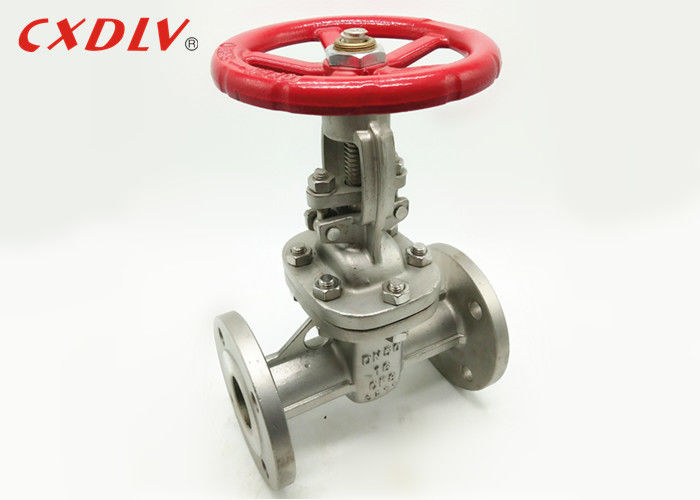

Rising Stem Flanged Gate Valve For Pipe Fitting Gear Power Wedge
Specifications
Applicable Standards:
- FACE TO FACE DIMENSION:GB/T 12221
- END FLANGE DIMENSION:GB/T 9113
- DESING:ANSI B16.34
- TEST:API598
Size Range:
- DN15~DN300
Pressure Rating:
- PN16~PN40
Temperature Range:
- -196°C~650°C
Application
The Z41 National Standard Manual Flange Gate Valve is one of the most common on-off valves that utilizes the up and down work of the gate to connect (open) and shut off (fully close) the fluid medium in the pipe. These gate valves are widely used as conditioning and shut-off devices in pipelines such as tap water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, marine, metallurgy, and energy systems.
| DN | L | D | D1 | D2 | b-f | z-φd | H |
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 185 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 200 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 225 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 275 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-18 | 295 |
| 50 | 250 | 160 | 125 | 100 | 16-3 | 4-18 | 350 |
| 65 | 265 | 180 | 145 | 120 | 18-3 | 4-18 | 370 |
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 390 |
| 100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 435 |
| 125 | 325 | 245 | 210 | 185 | 22-3 | 8-18 | 520 |
| 150 | 350 | 280 | 240 | 210 | 24-3 | 8-23 | 610 |
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-23 | 785 |
| 250 | 450 | 405 | 355 | 320 | 20-3 | 12-25 | 960 |
| 300 | 500 | 460 | 410 | 375 | 30-4 | 12-25 | 1080 |
Feature
1. The medium can flow in any direction on both sides, which is easy to install. The gate valve channels are symmetrical on both sides.
2. The length of the structure (the distance between the two connecting end faces of the casing) is small.
3. Simple shape, short structure length, good manufacturing process and wide application range.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner 5) Warm Gear | |||
|
|
