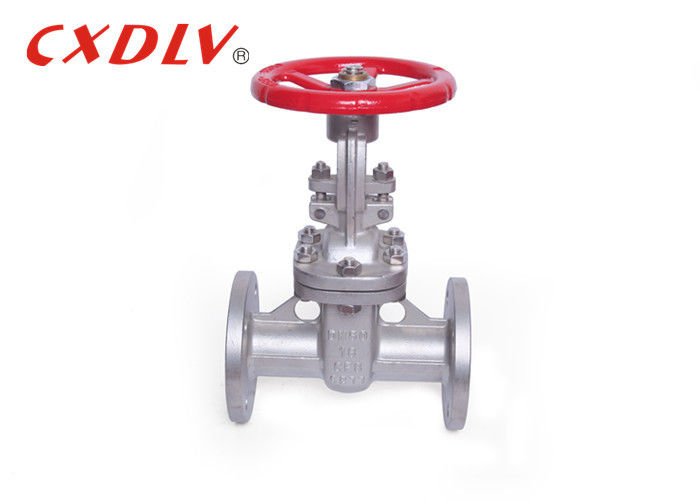

API Class Flanged Gate Valve Industrial Grade For Water With Soft Seal Seated
Specifications
Applicable Standards:
- Gate Valve, API600
- Steel Valves, ASME B16.34
- Face to face ASME B16.10
- End Flanges ASME B16.5/ASME B16.47
- Butt Welding ends ASME B16.25
- Inspection and test API 598
Size Range:
- DN15~DN300
Pressure Rating:
- PN16~PN40
Temperature Range:
- -196°C~650°C
Application
The bright rod gate valve, RRHX (Z41X) open rod elastic seat sealing gate valve is a new type of product, the introduction of foreign advanced technology has been modified to adapt to the water system, overcoming the general gate valve poor sealing, elastic fatigue, easy to rust and other defects. The elastic seat sealing gate valve is a replacement product of the traditional gate valve. It uses the elastic ram to produce a slight deformation compensation effect and achieves a good sealing effect. The valve has the advantages of light switch, reliable sealing, good elastic memory and long service life. It is used as a regulating and shut-off device in fluid pipelines such as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy systems.
| SIZE | L(RF) | d | H | H1 | W | W1 |
| 1/2" | 108 | 14 | 195 | / | 120 | / |
| 3/4" | 117 | 19 | 210 | / | 120 | / |
| 1" | 127 | 25 | 240 | / | 140 | / |
| 1 1/4" | 140 | 32 | 300 | / | 180 | / |
| 1 1/2" | 165 | 38 | 395 | / | 200 | / |
| 2" | 216 | 51 | 400 | / | 200 | / |
| 2 1/2" | 241 | 64 | 435 | / | 200 | / |
| 3" | 283 | 76 | 515 | / | 250 | / |
| 4" | 305 | 102 | 595 | / | 280 | / |
| 5" | 381 | 127 | 725 | / | 280 | / |
| 6" | 403 | 152 | 780 | 820 | 300 | 310 |
| 8" | 419 | 203 | 975 | 1020 | 350 | 310 |
| 10" | 457 | 330 | 1150 | 1200 | 400 | 310 |
| 12" | 502 | 356 | 1380 | 1430 | 450 | 310 |
Feature
1. Flat-bottom valve seat, no dirt accumulation, making the seal more reliable
2. The valve flap overall package NBR
3. The valve internals are made of corrosion-resistant and non-rust steel and copper alloy materials, which can be used in the sewage system to adapt to the harsh working environment.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
