| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal |
| Supply Capacity: | 500pcs/Mon |

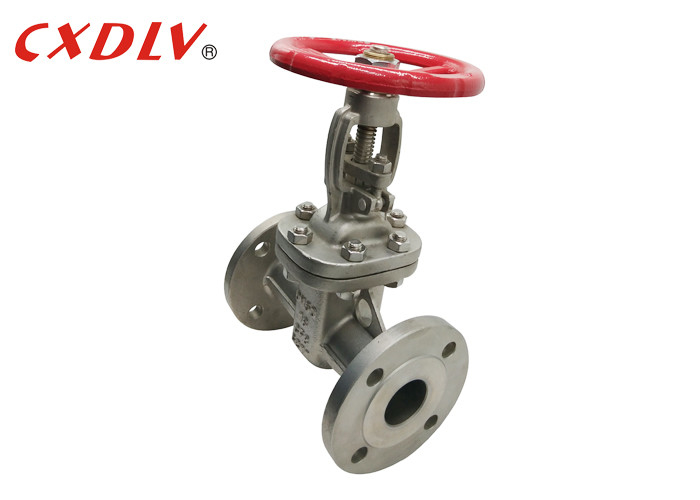

Stainless Steel ANSI 150LBFull Port Bolted RF Flange Type Gate Valve CF8/CF8M
Specifications
Applicable Standards:
- Face to face according to JIS B2002
- End Flanges according to JIS B2212-B213
- Inspection and test JIS B2003
Size Range:
- DN15~DN300
Pressure Rating:
- JIS 10K
Temperature Range:
- -29°C~185°C
Applicable Medium:
-water, oil, air and some corrosive liquid
Application
The bright rod gate valve, RRHX (Z41X) open rod elastic seat sealing gate valve is a new type of product, the introduction of foreign advanced technology has been modified to adapt to the water system, overcoming the general gate valve poor sealing, elastic fatigue, easy to rust and other defects. The elastic seat sealing gate valve is a replacement product of the traditional gate valve. It uses the elastic ram to produce a slight deformation compensation effect and achieves a good sealing effect. The valve has the advantages of light switch, reliable sealing, good elastic memory and long service life. It is used as a regulating and shut-off device in fluid pipelines such as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy systems.
| SIZE | L(RF) | d | H | H1 | W | W1 |
| 1/2" | 108 | 14 | 195 | / | 120 | / |
| 3/4" | 117 | 19 | 210 | / | 120 | / |
| 1" | 127 | 25 | 240 | / | 140 | / |
| 1 1/4" | 140 | 32 | 300 | / | 180 | / |
Feature
1. Small fluid resistance;
2. The torque for opening and closing is small, so it is easy to open and close;
3. The medium flowing direction is not restricted, and it doesn't disturb flowing and reducethe pressure of pipeline.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Operation | Handwheel Operated |
|||
|
|
