| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

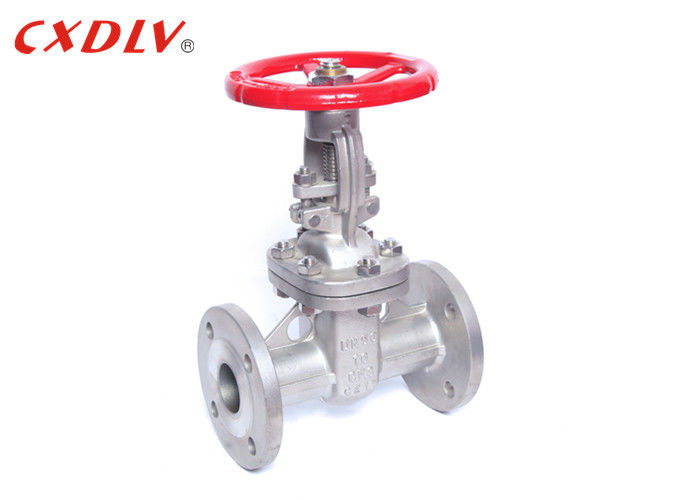

High Temp Industrial Grade 4 Inch Flanged Gate Valve Gear Operator Water Meter
Specifications
Applicable Standards:
- Gate Valve, API600
- Steel Valves, ASME B16.34
- Face to face ASME B16.10
- End Flanges ASME B16.5/ASME B16.47
- Butt Welding ends ASME B16.25
- Inspection and test API 598
Size Range:
- DN15~DN300
Pressure Rating:
- PN16~PN40
Temperature Range:
- -196°C~650°C
Application
The general gate valves used in the market have been leaking or rusting for a long time. The company introduced the high-grade rubber sealing valve produced by European high-tech rubber and valve manufacturing technology, which overcomes the defects of general gate valve sealing, rust and other elastic seats. The sealing valve uses the elastic ram to produce a slight elastic deformation compensation effect to achieve a good sealing effect. The valve has the advantages of light switch, reliable sealing, good elastic memory and long service life. Can be widely used in tap water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, shipbuilding, metallurgy, energy systems and other body pipelines as a regulating and intercepting device.
| SIZE | L(RF) | d | H | H1 | W | W1 |
| 1/2" | 108 | 14 | 195 | / | 120 | / |
| 3/4" | 117 | 19 | 210 | / | 120 | / |
| 1" | 127 | 25 | 240 | / | 140 | / |
| 1 1/4" | 140 | 32 | 300 | / | 180 | / |
| 1 1/2" | 165 | 38 | 395 | / | 200 | / |
| 2" | 216 | 51 | 400 | / | 200 | / |
| 2 1/2" | 241 | 64 | 435 | / | 200 | / |
| 3" | 283 | 76 | 515 | / | 250 | / |
| 4" | 305 | 102 | 595 | / | 280 | / |
| 5" | 381 | 127 | 725 | / | 280 | / |
| 6" | 403 | 152 | 780 | 820 | 300 | 310 |
| 8" | 419 | 203 | 975 | 1020 | 350 | 310 |
| 10" | 457 | 330 | 1150 | 1200 | 400 | 310 |
| 12" | 502 | 356 | 1380 | 1430 | 450 | 310 |
Feature
1. The valve internals are made of corrosion-resistant and non-rust steel and copper alloy materials, which can be used in the sewage system to adapt to the harsh working environment.
2. Small size, light weight, easy to install and repair
3. The valve stem is sealed by three O-rings, which greatly reduces the frictional resistance during switching. The switch is light and watertight.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner 5) Warm Gear | |||
|
|
