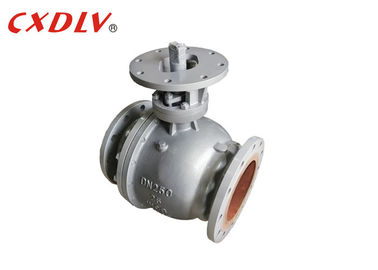

Carbon Steel Trunnion Valve CF8 Two Piece Flanged Casting Ball Valve

Carbon Steel Trunnion Valve CF8 Two Piece Flanged Casting Ball Valve

MOQ: 1pc
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q47F
Type:
Trunnion Ball
Body Material:
Casting Steel
Connection:
Flange Ends
Pressure:
PN16
Power:
Actuators
Model:
Q47F
Brand Name:
OEM
Highlight:

trunnion mounted ball valve

,

trunnion valve

Product Description

Carbon Steel Trunnion Valve CF8 Two Piece Flanged Casting Ball Valve



 Specifications

  • Available in sizes 2 ” - 24 ”
  • Available in PN16
  • Superior flow with unique contoured ball design
  • Full port
  • Available with Pneumatic, Electric, Gear or Lever Actuation
  • Single piston effect seating (DBB) standard, double piston effect seating (DIB) available
  • Industries: Oil & Gas, Marine, Refining, Geothermal, Power, Chemical, Pulp & Paper, Cryogenic, Mining/Steel
  • Manufactured under a certified ISO 9001 quality system



 Overview

The trunnion ball valve is a form of quarter-turn valve which uses a hollow, perforated and fixed/supported ball to control flow through it.

A trunnion mounted valve means that the ball is constrained by bearings and is only allowed to rotate, the majority of the hydraulic load to be supported by the System constraints, resulting in low bearing pressure and no shaft fatigue. The line pressure drives the upstream seat against the stationary ball so that the line pressure forces the upstream seat onto the ball to cause it to seal.

The mechanical anchoring of the ball absorbs the thrust from the line pressure, preventing excess friction between the ball and seats, so even at full rated working pressure operating torque remains low. This is particularly advantageous when the ball valve is actuated because it reduces the size of the actuator and hence the overall costs of the valve actuation package.



 Advantage

Trunnion ball design is the lower operating torque, ease of operation, minimized seat wear (Stem/ball isolation prevents side loading and wear of downstream seats improving performance and service life)/superior sealing performance at both high and low pressure (a separate spring mechanism and upstream line pressure is used as the sealing against the stationary ball for low pressure and high pressure m applications).

The trunnion is available for all sizes and for all pressure classes but they are not suitable for throttling purposes.



 Application

Ball valves can be used in a variety of applications and marketssuch as transmission and storage, gas processing, industrial, and many more. that ball valves provide reliable leak protection which is especially beneficial in gas applications. Ball valves have low pressure drop and can open and close quickly.



A variety of construction materials, trim options and designs make these valves extremely versatile. Ball valves, such as RING-O subsea ball valves, are commonly utilized in subsea applications on manifolds that require long service life at high pressures. Ball valve also are used in cryogenic applications where compressed gas must be kept at a stable temperature in order to be moved efficiently.



 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
