| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

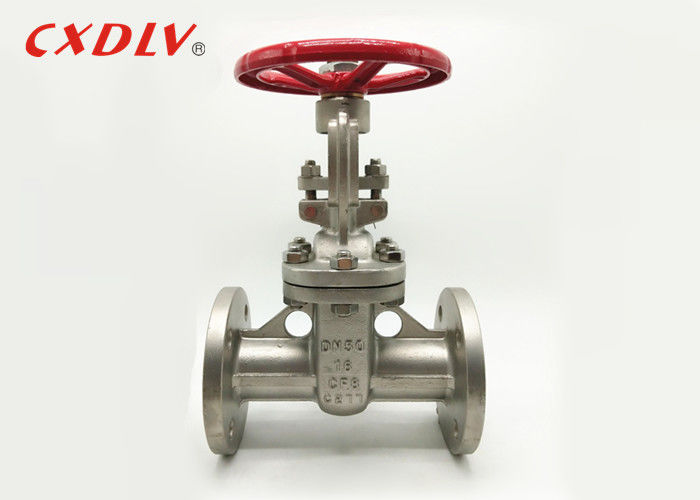

Lightweight Wedge Gate Valve Flange Connection For Sewage Silver Color
Specifications
Applicable Standards:
- FACE TO FACE DIMENSION:GB/T 12221
- END FLANGE DIMENSION:GB/T 9113
- DESING:ANSI B16.34
- TEST:API598
Size Range:
- DN15~DN300
Pressure Rating:
- PN16~PN40
Temperature Range:
- -196°C~650°C
Application
Gate valves consists of three main parts: body, bonnet, and trim. The body is generally connected to other equipment by means of flanged, screwed or welded connections. The bonnet, which containing the moving parts, is attached to the body, usually with bolts, to permit maintenance. The valve trim consists of the stem, the gate, the disc or wedge and the seat rings.Reliable, tight shutoff and low-pressure drop operation characterize the Flowserve range of gate valves. Flexible wedge, split wedge, slab gate and double-disk configurations cover a range of requirements to meet any user need, from general service to severe conditions with gross thermal transients or dual-phase fluids. Plant personnel are kept safe through the application of fast-acting valves manufactured to ASME Section III and RCC-M design codes.
| DN | L | D | D1 | D2 | b-f | z-φd | H |
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 185 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 200 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 225 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 275 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-18 | 295 |
| 50 | 250 | 160 | 125 | 100 | 16-3 | 4-18 | 350 |
| 65 | 265 | 180 | 145 | 120 | 18-3 | 4-18 | 370 |
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 390 |
| 100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 435 |
| 125 | 325 | 245 | 210 | 185 | 22-3 | 8-18 | 520 |
| 150 | 350 | 280 | 240 | 210 | 24-3 | 8-23 | 610 |
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-23 | 785 |
| 250 | 450 | 405 | 355 | 320 | 20-3 | 12-25 | 960 |
| 300 | 500 | 460 | 410 | 375 | 30-4 | 12-25 | 1080 |
Feature
1.The fluid resistance is small, and the sealing surface is less washed and eroded by the medium (the shutter opening height is high).
2. Compact structure, good rigidity of the valve, smooth passage, small flow resistance, stainless steel and hard alloy on the sealing surface, long service life, PTFE packing, reliable sealing, light and flexible operation.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Valve Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Actuator | 1) Single Acting(Spring Return) 2) Double Acting | |||
| Accessories | 1) Limit Switch 2) Solenoid valve 3) Filter 4)Positioner 5) Warm Gear | |||
|
|
