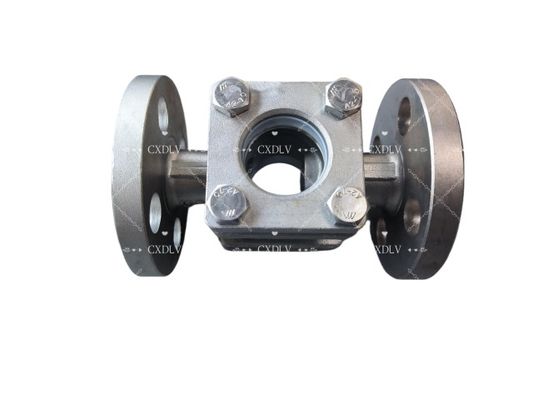

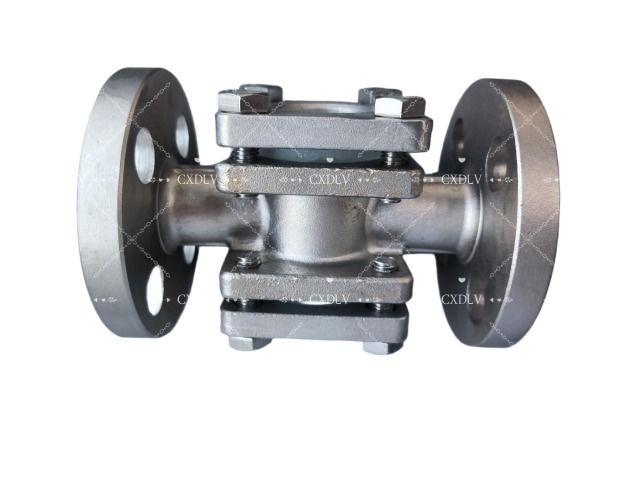

ASTI16.5 Flanged Inspection Window Visual Pipeline and Vessel Inspection with Flow Indicators
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO |
| Model Number: | Sight Glass |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Seat: | PTFE | Working Temperatures: | Up To 250ºC |
|---|---|---|---|
| Flange Connection: | ASTI16.5 | Flow Indicators: | Provide Visual Into Pipelines Or Sealed Vessels |
| Size Range: | DN15~DN150 | Glass: | Borosilicate |
| Pressure Rating: | GB PN16 | Temperature Range: | -20°C~185°C |
Product Description
Product Description:
The Flanged Sight Glass is a versatile and reliable product designed for various industrial applications. Featuring a flange connection of ASTI16.5, this sight glass provides a secure and robust connection for seamless integration into your system. The flange connection ensures stability and ease of installation, allowing for quick and efficient setup.
One of the key components of the Flanged Sight Glass is its high-quality borosilicate glass. Known for its exceptional clarity and durability, borosilicate glass offers superior visibility and resistance to thermal shock. This ensures a clear view of the internal processes and enables operators to monitor the flow of water, oil, and gas with precision.
The Flanged Sight Glass is compatible with a wide range of mediums, including water, oil, and gas. This versatility makes it a valuable asset in industries where different types of fluids are handled, providing operators with the flexibility to monitor various processes effectively.
Constructed from stainless steel, the body of the Flanged Sight Glass is durable and corrosion-resistant, ensuring long-lasting performance in demanding environments. The stainless steel construction not only enhances the structural integrity of the sight glass but also helps maintain hygiene standards, making it suitable for industries with strict cleanliness requirements.
Available in a size range from DN15 to DN150, the Flanged Sight Glass can accommodate different pipe sizes and flow rates, making it suitable for a wide range of applications. Whether you need a small-scale monitoring solution or a larger sight glass for high-flow processes, the size range ensures that you can find the right fit for your specific requirements.
Equipped with a flanged see-through window, the Flanged Sight Glass provides operators with a clear and unobstructed view of the internal processes. The see-through window offers a direct line of sight into the system, allowing for real-time monitoring and visual inspection of the fluid flow. This visibility is crucial for detecting any abnormalities or blockages in the system, enabling prompt maintenance and troubleshooting.
The Flanged Sight Glass also features a flanged sight opening that allows for easy access to the internal components for maintenance and cleaning. The sight opening provides a convenient point for inspection, ensuring that the glass remains clean and free from debris that could obstruct the view. This accessibility simplifies routine maintenance tasks, contributing to the overall efficiency and reliability of the sight glass.
With its robust construction, high-quality materials, and versatile design, the Flanged Sight Glass is a dependable solution for monitoring fluid processes in various industrial settings. Whether used in water treatment plants, oil refineries, or gas distribution facilities, this sight glass offers unparalleled visibility, durability, and performance, making it an essential component for ensuring smooth and efficient operations.
Features:
- Product Name: Flanged Sight Glass
- Applicable Standards: ASTM B16.34
- Flow Indicators: Provide visual into pipelines or sealed vessels
- Body Material: Stainless Steel
- Medium: Water Oil Gas
- Temperature Range: -20°C~185°C
Technical Parameters:
| Test and Inspection | API598 |
| Medium | Water Oil Gas |
| Glass | Borosilicate |
| Seat | PTFE |
| Temperature Range | -20°C~185°C |
| Pressure Rating | GB PN16 |
| Size Range | DN15~DN150 |
| Applicable Standards | ASTM B16.34 |
| Body Material | Stainless Steel |
| Flow Indicators | Provide visual into pipelines or sealed vessels |
Applications:
Flanged Sight Glass, also known as Flanged Sight Point or Flanged Visual Flow Indicator, is a critical component widely used in various industrial applications due to its transparency and durability. The CXDLV Sight Glass, certified with CE&ISO, originates from China and is available for purchase with a minimum order quantity of 1pc. The price is negotiable, and multiple payment terms such as T/T, Paypal, Western Union, D/A, L/C, D/P, and MoneyGram are accepted.
With a delivery time of 5~25 work days and a supply ability of 500pcs/month, the CXDLV Sight Glass comes in suitable plywood cases tailored to different valve structures for safe transportation. The temperature range of -20°C~185°C makes it suitable for a wide range of operating conditions.
The body material of the Sight Glass is constructed from high-quality stainless steel, ensuring longevity and resistance to corrosion. It can handle working pressures of up to 16 bar for the standard range and up to 40 bar for the high-pressure range.
Designed to accommodate mediums such as water, oil, and gas, the CXDLV Sight Glass is available in various valve sizes ranging from DN15 to DN200. This versatility makes it suitable for applications in industries such as chemical processing, pharmaceuticals, food and beverage, and many more.
Whether monitoring flow rates, inspecting processes, or ensuring system integrity, the Flanged Sight Glass from CXDLV provides a clear view of the fluid passing through the system, allowing for efficient operation and maintenance. Its robust construction and reliable performance make it an essential component in industrial fluid handling systems.
Support and Services:
The Flanged Sight Glass product comes with comprehensive Product Technical Support and Services to assist customers with any issues or questions they may have. Our team of experts is available to provide guidance on installation, troubleshooting, and maintenance to ensure optimal performance of the sight glass. Additionally, we offer training sessions and documentation to help users make the most of their product experience.
Packing and Shipping:
Product Packaging:
The Flanged Sight Glass is carefully packed in a sturdy cardboard box to ensure safe transportation. The glass is securely encased in foam padding to prevent any damage during shipping.
Shipping:
Orders for the Flanged Sight Glass are processed promptly and shipped via a reliable courier service. Customers will receive a tracking number to monitor the status of their delivery.
FAQ:
Q: What is the brand name of this product?
A: The brand name is CXDLV.
Q: What is the model number of the Flanged Sight Glass?
A: The model number is Sight Glass.
Q: What certifications does this product have?
A: This product is certified with CE&ISO.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What are the accepted payment terms for purchasing this product?
A: The accepted payment terms are T/T, Paypal, Western Union, D/A, L/C, D/P, and MoneyGram.
