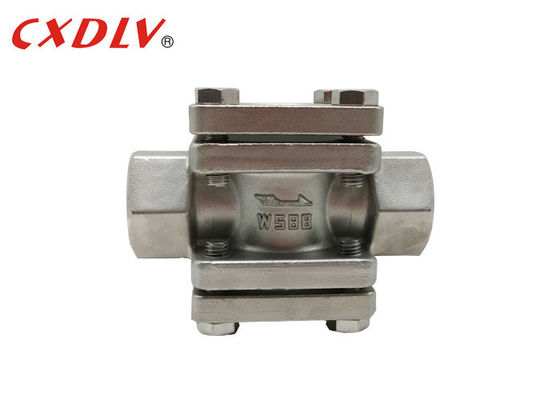

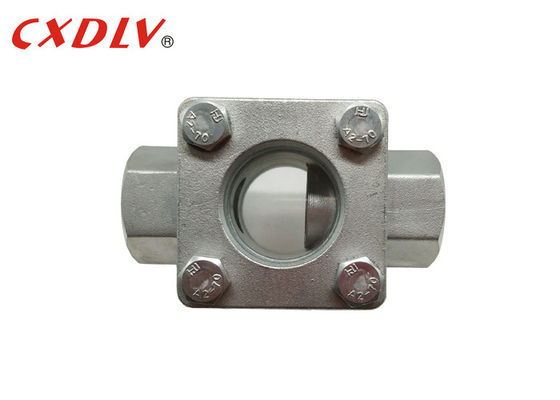

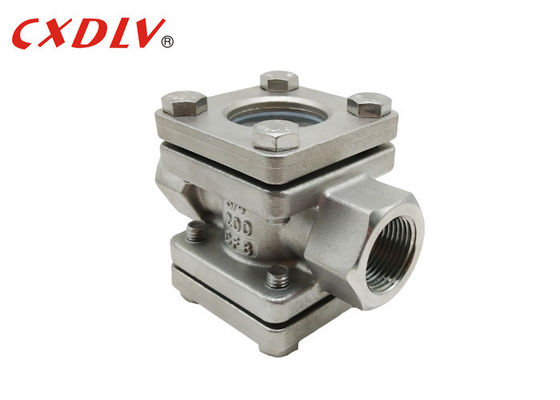

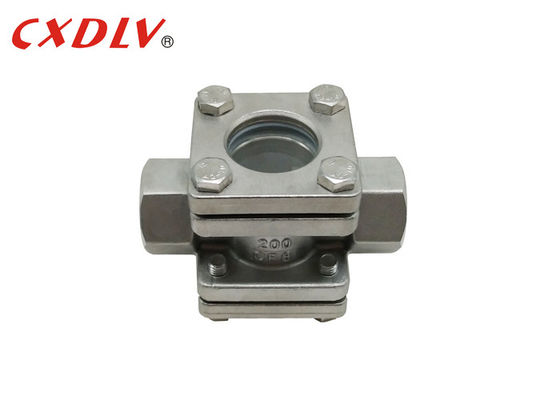

Plain Threaded 3/4" Flow Indicator PN16 Flanged Sight Glass

Plain Threaded 3/4" Flow Indicator PN16 Flanged Sight Glass

MOQ: 1pcs
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 7~25days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000pcs/Mon
Detail Information
Place of Origin
Wenzhou,China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
SG
Body Material:
CF8,CF8M,WCB
Connection:
BSP,NPT
Glass:
Borosilicate
Pressure:
PN16
Size:
DN15~DN50
Color:
Silvery
Highlight:

PN16 Flanged Sight Glass

,

DN15 Flanged Sight Glass

,

Plain Threaded 3/4" Sight Glass

Product Description

Plain Threaded 3/4"Inch Water Liquid Flow Indicator PN16 Sight Glass

Product Feature

The flow indicator is also called the sight glass.Its work to observe the flow of medium in the pipeline.Widely used in petroleum,chemical,chemical fiber,medicine,food and other industrial production equipment,can observe the flow of liquid,gas,steam mediumreaction,its indispensable to guarantee the normal production accessories in factory productions.Flow indicator include female thread flow indicator and flanged flow indicator.



1.the usage of flow indicator

Used to observe the medium flow in the pipeline situation.



2.flow indicator is a practical product easy to observe and install

At least it is ok to pass through the media.Both ends can be used as an entrance,simple,direct and reliable.  and it's easy to obseve and install.



3.the chatacteristics of traffic indicator

A.Window surface glass is easy to clean

B.The glass window can be 180 direction of observation

C.With legislation,lying dual easy to install or disassemble



Technical Data

Plain Threaded 3/4" Flow Indicator PN16 Flanged Sight Glass 0

  d L W ΦXG H
DN15 15 100 60X60 45X10 60
DN20 20 100 60X60 45X10 70
DN25 25 115 71X71 55X10

80



Overview

A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.



Reference

  Flange Sight Glass Thread Sight Glass
Standard JIS,DIN,ANSI BSP,BSPT,NPT
Material CF8,CF8M,WCB
Size DN15~DN200 DN15~DN50
