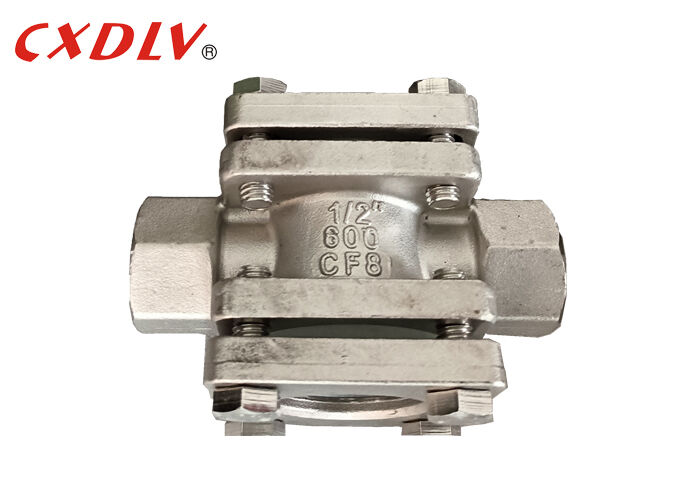

1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | ISO5211/PED |
| Model Number: | Sight Glass/SG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Body Material: | CF8M/CF8/A216 WCB/CF3M | Glass: | Borosilicate/Tempered |
|---|---|---|---|
| Seat: | PTFE/NBR | Connection: | BSP/NPT |
| Valve Size: | 1/2" ~4" | Temperature: | -20~180℃ |
Product Description
1/2 Inch Stainless Steel Sight Glass Threaded Connection NPT
Product Feature
Flow Indicator Sight Glass Threaded Connection
Applicable Standards:
- Connection: Threaded
- Test and Inspection: API598
Size Range:
- DN15~DN40
Pressure Rating:
-1.0Mpa
Temperature Range:
- -20°C~180°C
Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.
Sight Glass Overview
When simple visual flow indication will be sufficient we have a sight flow indicator option to suit most applications.
Our sight indicators are ideal for observing and monitoring fluid characteristics such as direction, flow and colour.
Technical Data
| DN | H | L | D |
| 15 | 60 | 100 | 89 |
| 20 | 70 | 100 | 98 |
| 25 | 80 | 115 | 108 |
Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical
Model Selection
| Product Name | Flow Sight Glass Indicator | |||
| Connection | Flange | Threaded | ||
| Pressure | DIN/JIS/ANSI | 0.6Mpa | ||
| Material | 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel/904L | |||
