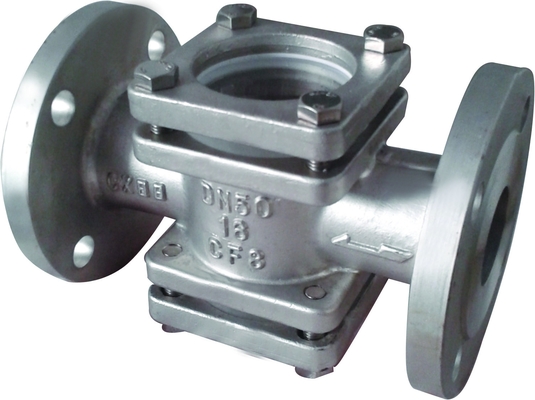

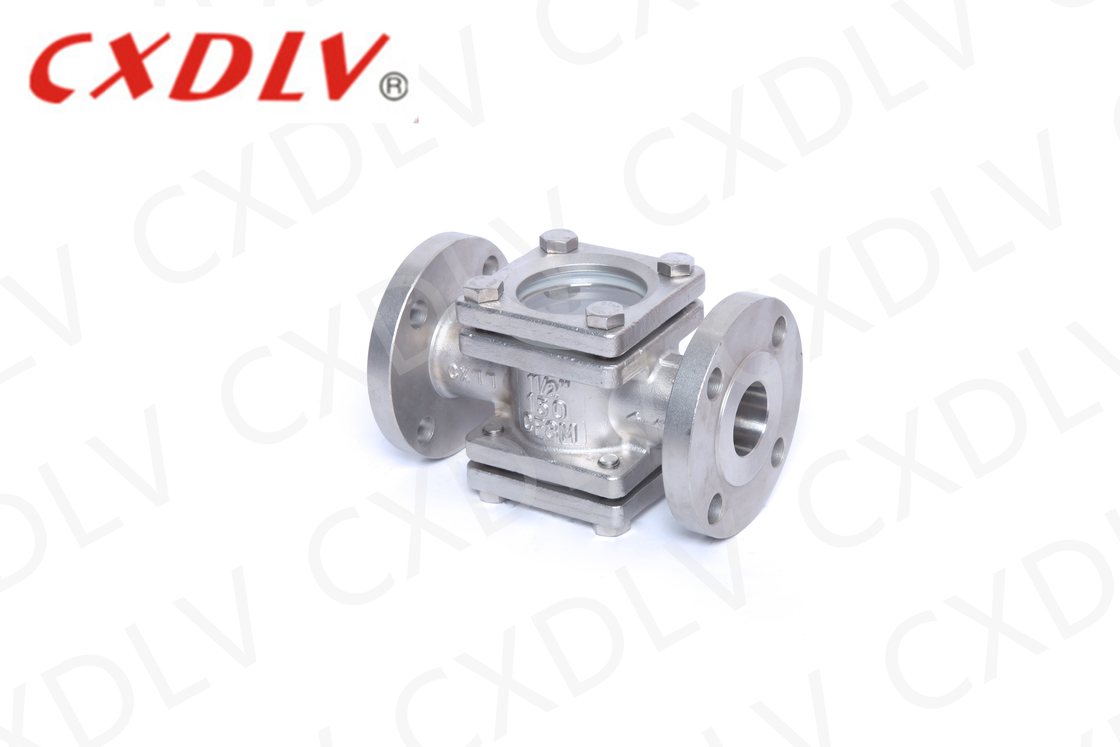

Double Flange PN40 High Pressure Sight Glass Casting Stainless Steel CF8
Product Feature
Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- DN15~DN150
Pressure Rating:
- GB PN16
Temperature Range:
- -20°C~185°C
Flow Indicators provide a visual into pipelines or sealed vessels enabling the user to see immediately if flow is taking place and to observe colour, volume and condition of the flow.
Our range of Flow Indicators come with a choice of stainless steel, carbon steel and gun metal bodies, suit industrial applications with working temperatures up to 250ºC and working pressures up to 16 bar for the standard range and 40 bar for the high pressure range.
Technical Data
| DN | H | L | D | D1 | D2 | Z-φd | b | W | φ | E |
| 15 | 72 | 130 | 89 | 60.5 | 35 | 4-16 | 11.5 | 60×60 | 50 | 10 |
| 20 | 82 | 150 | 98 | 70 | 43 | 4-16 | 12 | 72×72 | 60 | 10 |
| 25 | 92 | 160 | 108 | 79.5 | 51 | 4-16 | 13 | 80×80 | 65 | 12 |
| 32 | 105 | 180 | 117 | 89 | 64 | 4-16 | 14 | 90×90 | 75 | 12 |
| 40 | 115 | 200 | 127 | 98.5 | 73 | 4-16 | 15 | 100×100 | 85 | 12 |
| 50 | 140 | 230 | 152 | 120.5 | 92 | 4-19 | 16 | 110×110 | 95 | 15 |
Note
Please keep in mind that, contrary to common belief, every sight glass is subject to wear.Lens and sealing gaskets should be replaced periodically before there is an obvious sign of degradation. We therefore recommend that you regularly check the sight glass and always order spare glass and seals with your sight glass.
Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical
Model Selection
| Product Name | Flow Sight Glass Indicator | |||
| Connection | Flange | Thread | ||
| Pressure | DIN/JIS/ANSI | 0.6Mpa | ||
| Material | 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel | |||
Video
Video
Video
|
|
