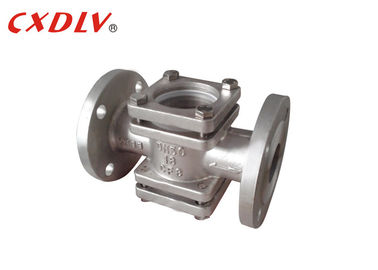

Industial SS321 Flanged Sight Glass Stainless Steel Double Windows Flow Indicator

Industial SS321 Flanged Sight Glass Stainless Steel Double Windows Flow Indicator

MOQ: 1pc
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Sight Glass
Body Material:
SS321 Stainless Steel
Glass:
Borosilicate
Seat:
PTFE
Model:
Plain
Valve Size:
1/2" ~8"
Temperature:
-20~150℃
Highlight:

Double Windows Flange Sight Glass

,

Industrial SS 321 Flange Sight Glass

,

Flange Sight Glass Flow Indicator

Product Description

Industial SS321 Stainless Steel Double Windows Sight Glass Flow Indicator


 Product Feature

 Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Flange Connection: ASME B16.5

- Test and Inspection: API598

Size Range:
- DN15~DN200

Pressure Rating:
- ANSI 150LB
Temperature Range:
- -20°C~180°C

Technical Data

Industial SS321 Flanged Sight Glass Stainless Steel Double Windows Flow Indicator 0

DN H L D D1 D2 Z-φd b W
15 72 130 89 60.5 35 4-16 11.5 60×60
20 82 150 98 70 43 4-16 12 72×72
25 92 160 108 79.5 51 4-16 13 80×80
32 105 180 117 89 64 4-16 14 90×90
40 115 200 127 98.5 73 4-16 15 100×100
50 140 230 152 120.5 92 4-19 16 110×110





Sight Glass Overview

Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.



When simple visual flow indication will be sufficient we have a sight flow indicator option to suit most applications.

Our sight indicators are ideal for observing and monitoring fluid characteristics such as direction, flow and colour.

We have rising ball style, spinners and flap and spout flow indicator options available in a choice of sizes and materials with screwed, flanged or wafer connections. Compatible with water, oil, chemicals up to 600 centistokes as well as gases, our flow sight indicators meet the needs of many and varied applications.



 Application

1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical



 Model Selection

Product Name Flow Sight Glass Indicator
Connection Flange Thread
Pressure DIN/JIS/ANSI 0.6Mpa
Material 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel

Industial SS321 Flanged Sight Glass Stainless Steel Double Windows Flow Indicator 1
