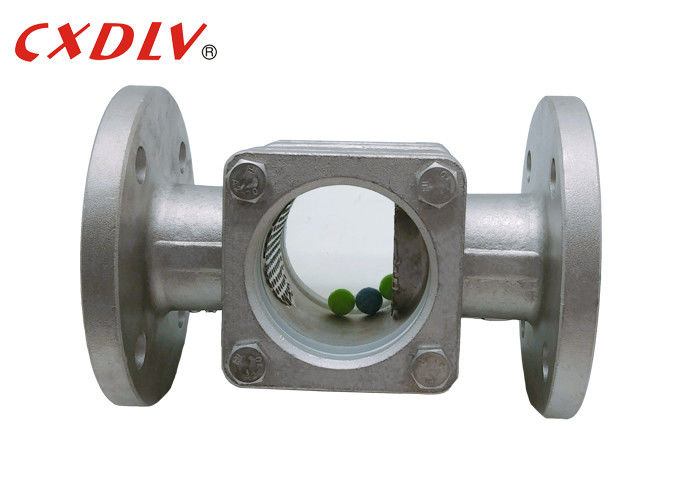

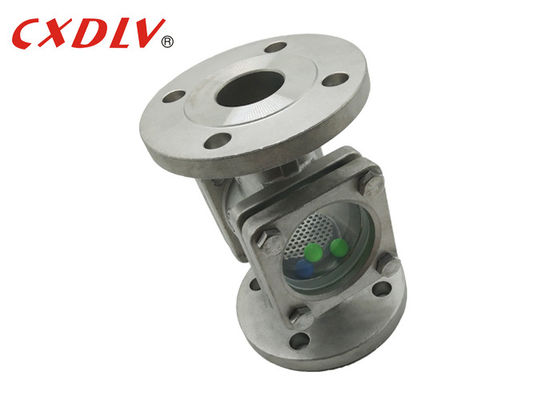

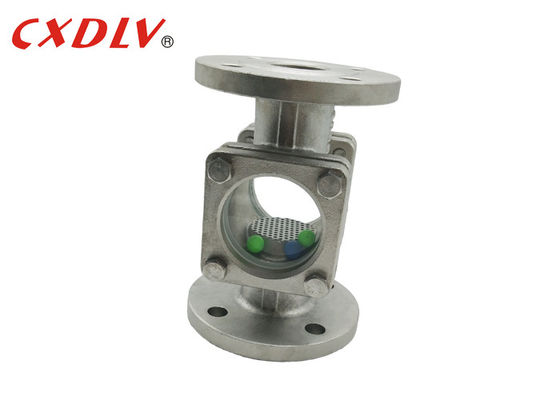

ANSI CF8 Straight Through Flanged Sight Glass With Balls Inside

ANSI CF8 Straight Through Flanged Sight Glass With Balls Inside
ANSI CF8 Straight Through Flanged Sight Glass With Balls Inside

Large Image :  ANSI CF8 Straight Through Flanged Sight Glass With Balls Inside

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: SG-ZT
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs/Mon
Detailed Product Description
Material: CF8 Glass: Borosilicate
Structure: Balls Inside Glasket: PTFE
Temperature: 20℃~185℃ Connection: 150LB RF
Size: 1/2"~8"
High Light:

Straight Through Flanged Sight Glass


CF8 Flanged Sight Glass


ANSI Flanged Sight Glass

Flanged stainless steel Straight through Sight Glass with balls inside

Product Feature

A Sight Flow Indicator is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight Flow Indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows,usually with gasket,and a way to mount the indicator to the pipeline,such as flanged,threaded connections.Sight flow indicator are available to fit standard pipe ranging from 1/2"~8" and carry ANSI pressure rating.

Double Flange Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Flange Connection: ASTI16.5

- Test and Inspection: API598

Size Range:
- 1/2"~8"

Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C


Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.


Salient Features
Easy Maintenance

Available in all most all Material of Construction

Manufactured to the Highest Standard

Durable Construction

Material Test Certificate & Pressure Test Certificates furnished on request.


Technical Data

ANSI CF8 Straight Through Flanged Sight Glass With Balls Inside 0

Size Dimension(mm)
H L D D1 D2 b Z-d
2" 140 230 162 127 92 23 8-19
6" - 420 318 270 216 36.5 12-22


Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
