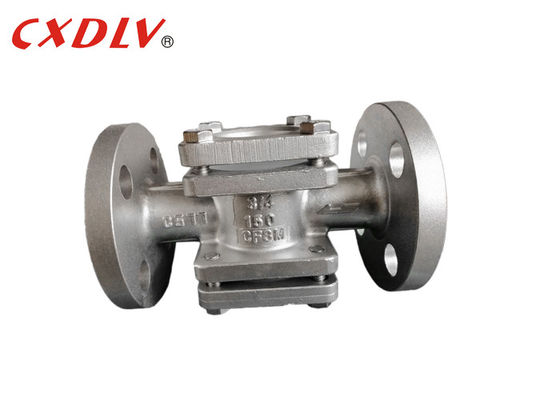

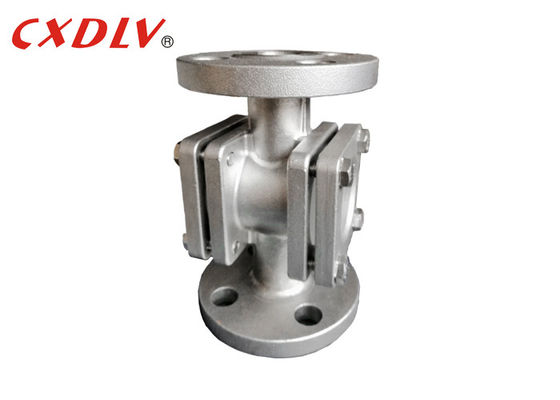

Water Flow Indicator Flanged Sight Glass 3/4 Investment Casting Cf3m

Water Flow Indicator Flanged Sight Glass 3/4 Investment Casting Cf3m

MOQ: 1pc
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 1000pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
SG-ZT
Material:
CF3M
Glass:
Borosilicate
Glasket:
PTFE
Temperature:
20℃~185℃
Connection:
150LB RF
Size:
1/2"~8"
Highlight:

Flow Indicator Flanged Sight Glass

,

Cf3m Flanged Sight Glass

,

Investment Casting Flanged Sight Glass

Product Description

pump water flow indicator sight glass 3/4 investment casting cf3m

Product Feature

Double Flange Sight Glass
- Connection per ASME B16.5

- Standard fasteners per ASTM A193 complying with most pipe specification

- Borosilicate glass

- Pipeline view is maximized for unobstructed process observation of gases,solids,solutions and slurries

- XIDELONG's ANSI flanged unites are ideal for piping,process,and mechanical engineers that wish to view the content inside their pipelines.



Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.



Salient Features
Easy Maintenance

Available in all most all Material of Construction

Manufactured to the Highest Standard

Durable Construction

Material Test Certificate & Pressure Test Certificates furnished on request.



Technical Data

Water Flow Indicator Flanged Sight Glass 3/4 Investment Casting Cf3m 0

Size Dimension(mm)
H L D D1 D2 b Z-d
2" 140 230 162 127 92 23 8-19
6" - 420 318 270 216 36.5 12-22



Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
