DIN RF Flange Borosilicate Glass Sight Flow Indicators
Product Details:
| Place of Origin: | Wenzhou,China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO |
| Model Number: | SG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 7~25days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Mon |
|
Detail Information |
|||
| Connection: | DIN | Body Material: | CF8,CF8M,WCB |
|---|---|---|---|
| Glass: | Borosilicate | Gasket: | PTFE |
| Pressure: | PN16 | Size: | DN15~DN300 |
| Temperature: | -20~180℃ | ||
| Highlight: | Borosilicate Glass Sight Flow Indicators,DIN RF Sight Flow Indicators,PN16 Sight Flow Indicators |
||
Product Description

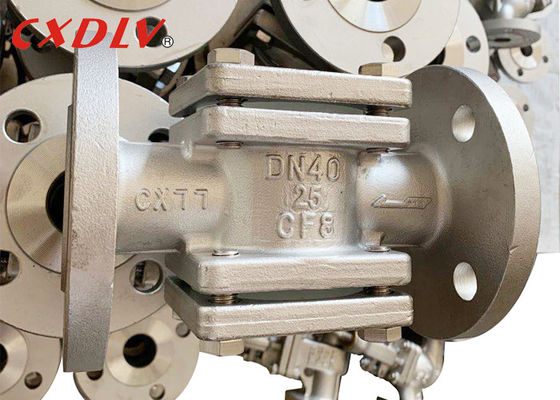

DIN RF Flange Double Windows Borosilicate Glass Pump Sight Glass
Sight Flow Indicators are manufactured of quality materials and safety tested to assure long,dependable service at economical prices.Xidelong offer DIN flange process connection,double viewing windows, and body of carbon steel or stainless steel.
Product Feature
Flange Sight Glass
Material:
- Body Mateial:CF8.CF8M,CF3,CF3M,904L,Duplex Stainless Steel,WCB
- Bonnet: The same as body
- Glass: Borosilicate
- Gaske:PTFE(or PPL)
Size Range:
- DN15~DN300
Pressure Rating:
- DIN RF PN16, PN25
Temperature Range:
- -20°C~180°C
Technical Data
Overview
A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.
Reference
| Flange Sight Glass | |||
| Standard | JIS | DIN | ANSI |
| Pressure | 10K,20K | PN16,PN25,PN40 | 150LB,300LB |
| Material | CF8,CF8M,WCB | ||
| Size | DN15~DN200 | ||
