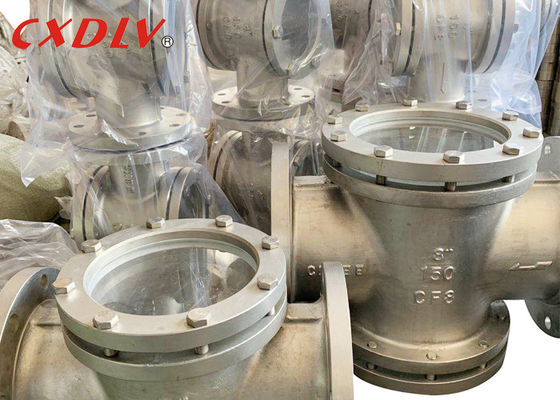

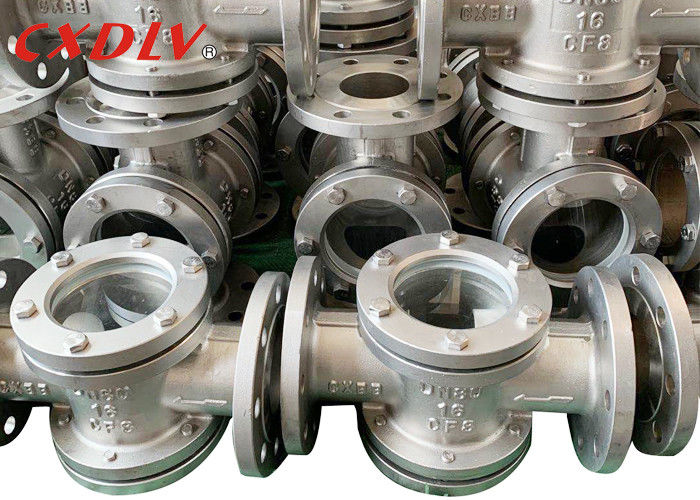

Round View flange Straight Stainless Steel Sight Glass / high pressure sight glass
Product Feature
Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Test and Inspection: API598
Size Range:
- DN15~DN300
Pressure Rating:
- 150LB,300LB
Temperature Range:
- -20°C~150°C
Technical Data
| H | L | D | D1 | D2 | |
| 1" | 92 | 160 | 108 | 79.5 | 51 |
| 2" | 140 | 230 | 152 | 120.5 | 92 |
| 3" | 180 | 310 | 190 | 152.5 |
127 |
| 4" | 215 | 350 | 229 | 190.5 | 157.5 |
Overview
A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.
Reference
| Flange Sight Glass | |||
| Standard | JIS | DIN | ANSI |
| Pressure | 10K,20K | PN16,PN25,PN40 | 150LB,300LB |
| Material | CF8,CF8M,WCB | ||
| Size | DN15~DN200 | ||
