| MOQ: | 1pc |
| Price: | FOBUS$34~550/pc |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Capacity: | 1000pcs/Mon |

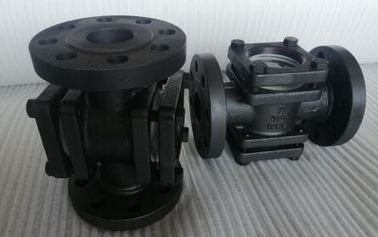

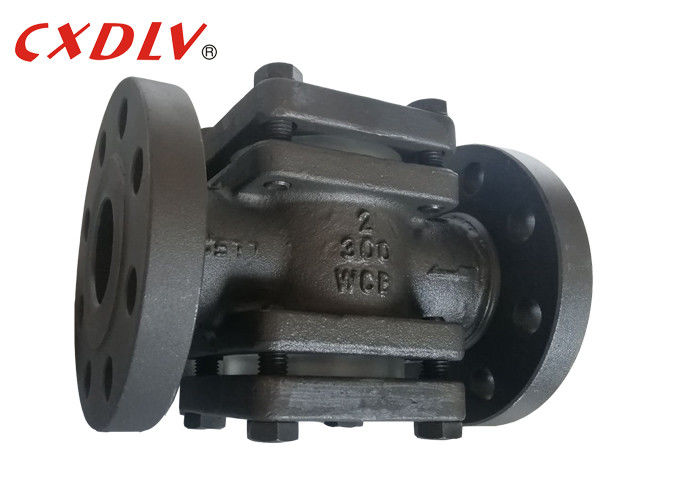

WCB ANSI300 Tempered Glass Round Sight Glass Flow Indicator For LPG
Product Feature
Double Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- 1/2"~8"
Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C
Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.
Salient Features
Easy Maintenance
Available in all most all Material of Construction
Manufactured to the Highest Standard
Durable Construction
Material Test Certificate & Pressure Test Certificates furnished on request.
Technical Data
| Size | Dimension(mm) | ||||||
| H | L | D | D1 | D2 | b | Z-d | |
| 2" | 140 | 230 | 162 | 127 | 92 | 23 | 8-19 |
| 6" | - | 420 | 318 | 270 | 216 | 36.5 | 12-22 |
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
Video
Video
Video
|
|
