| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

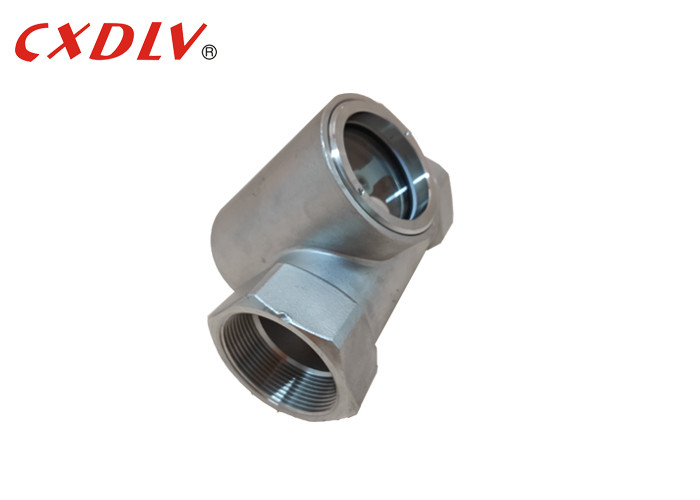

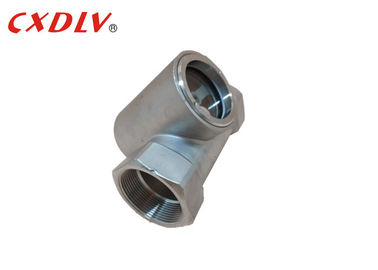

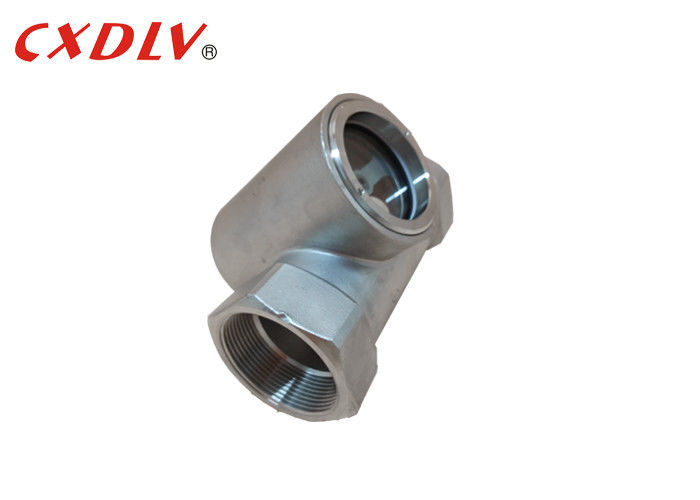

Stainless Steel Threaded Screw Flanged Sight Glass For Water Oil Chemicals
Product Feature
Thread Sight Glass
Body Material : Stainless Steel
Glass Material : Tempered Glass
Working Temperature(℃) : 0~180
Normal Pressure(MPa) : ＜0.6
Seat Material : NBR/PTFE
Connection : Thread
Allowed Sudden Change Temperature(℃) : ＜60
Flow indicators are used extensively as a visual aid to process operations and plant protection. They provide windows into pipelines, enabling the user to see immediately if flow is taking place and to observe colour and condition of the flow.
Overview
A sight flow indicators is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight flow indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows, usually with gaskets, and a way to mount the indicator to the pipeline, such as flanged, threaded connections. Sight flow indicators are available to fit standard pipe sizes ranging from 1/4-inch to 16-inches and carry ANSI pressure ratings. Sight flow indicators may be applied to almost every phase of movement, whether it is liquid, gas or powder.
Technical Data
| DN | L | H |
| 20 | 90 | 65 |
| 25 | 110 | 65 |
| 32 | 135 | 75 |
| 40 | 135 | 80 |
| 50 | 155 | 85 |
Application

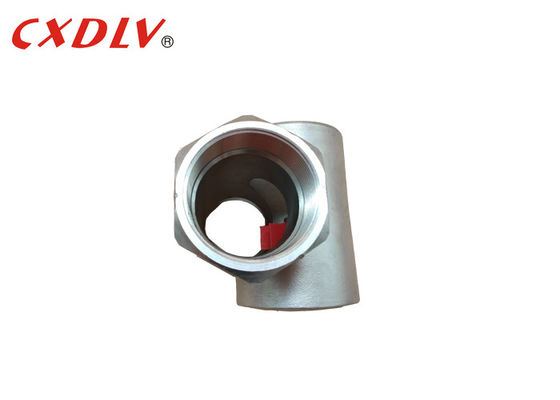

This model can be mounted in any pipeline position, and will operate over a wide flow range. With the highly visible PTFE spinner, is suitable for clear and cloudy liquids.
More Selection
| Product Name | Flow Sight Glass Indicator | |||
| Connection | Flange | Thread | ||
| Pressure | DIN/JIS/ANSI | 0.6Mpa | ||
| Material | 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel | |||
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Video
Video
Video
|
|
