| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

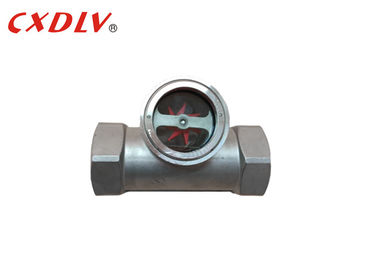

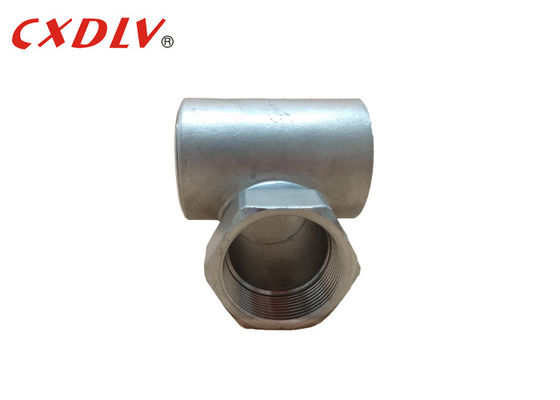

Visual Flow Indication Thread High Temp Sight Glass With Spinners And Flap
Product Feature
Thread Sight Glass
Body Material : Stainless Steel
Glass Material : Tempered Glass
Working Temperature(℃) : 0~180
Normal Pressure(MPa) : ＜0.6
Seat Material : NBR/PTFE
Connection : Thread
Allowed Sudden Change Temperature(℃) : ＜60
Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.
Technical Data
| DN | L | H |
| 20 | 90 | 65 |
| 25 | 110 | 65 |
| 32 | 135 | 75 |
| 40 | 135 | 80 |
| 50 | 155 | 85 |
Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical
More Selection
| Product Name | Flow Sight Glass Indicator | |||
| Connection | Flange | Thread | ||
| Pressure | DIN/JIS/ANSI | 0.6Mpa | ||
| Material | 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel | |||
Why Choose us?
1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve, butterfly valve, gate valve,globe valve,check valve and so on throughout the world.
2. More than 15 years' experiences in this field and CE,ISO, etc. certificated qualification and extreme standard let us keep very competitive in the current market.
3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models(CF8 material valve).
And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. Of course,you can depend on high-quality service. We'll treat every email within 24 hours. (Usually much faster)
