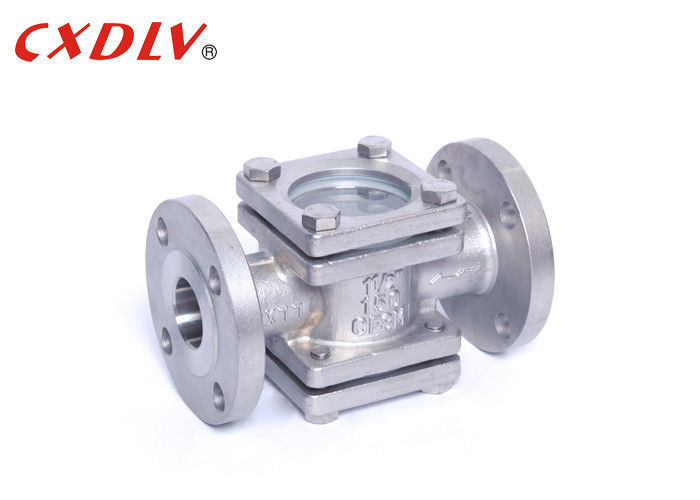

JIS 10K 2 " SS Flap Flanged Sight Glass Inside Plate Impeller Spinner Tube Fitting
Product Feature
Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- DN15~DN150
Pressure Rating:
- GB PN16
Temperature Range:
- -20°C~185°C
Sight glass, also called inspection glass, sight port or sight windows is described as a window in a pipe, or sidewalls of boilers, tanks, process chambers or silos for visually observing the presence, flow or the level of a medium. With this sight glass you can check / inspect a device or the entire process.
Technical Data
| DN | H | L | D | D1 | D2 | Z-φd | b | W | φ | E |
| 15 | 72 | 130 | 89 | 60.5 | 35 | 4-16 | 11.5 | 60×60 | 50 | 10 |
| 20 | 82 | 150 | 98 | 70 | 43 | 4-16 | 12 | 72×72 | 60 | 10 |
| 25 | 92 | 160 | 108 | 79.5 | 51 | 4-16 | 13 | 80×80 | 65 | 12 |
| 32 | 105 | 180 | 117 | 89 | 64 | 4-16 | 14 | 90×90 | 75 | 12 |
| 40 | 115 | 200 | 127 | 98.5 | 73 | 4-16 | 15 | 100×100 | 85 | 12 |
| 50 | 140 | 230 | 152 | 120.5 | 92 | 4-19 | 16 | 110×110 | 95 | 15 |
Application
1. Utilities and power
2. Pharmaceuticals
3. Food and beverage
4. Biofuels
5. Wastewater treatment and management
6. And chemical/petrochemical
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
Model Selection
| Product Name | Flow Sight Glass Indiccator | |||
| Connection | Flange | Thread | ||
| Pressure | DIN/JIS/ANSI | 0.6Mpa | ||
| Material | 1)CF8/SS304 2)CF8M/SS316 3)Carbon Steel | |||
