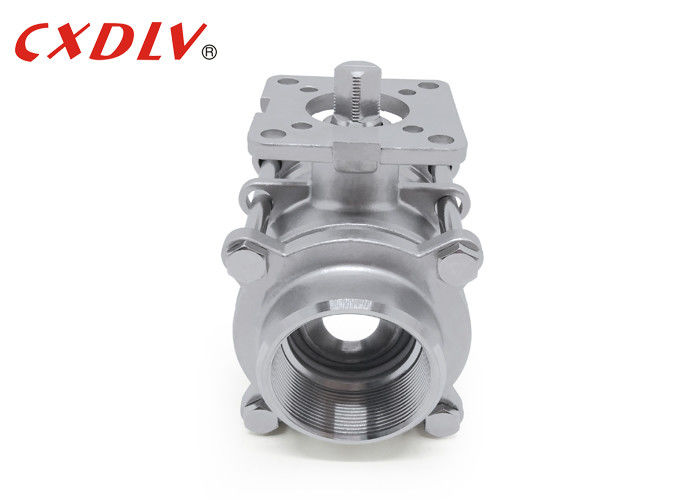

Screw Connection 3 Piece Bolt Full Port Ball Valve Female With NPT BSPT Thread Ends

Screw Connection 3 Piece Bolt Full Port Ball Valve Female With NPT BSPT Thread Ends

MOQ: 1pc
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q11F
Body Material:
CF8 CF8M
Seat Material:
PTFE
Power:
Actuators
Connection:
BSPT
Pressure:
1000wog
Structure:
3 Pieces
Highlight:

flanged y strainer

,

industrial y strainers

Product Description

Screw Connection 3 Piece Bolt Full Port Ball Valve Female With NPT BSPT Thread Ends


 Specifications

  • Body Material:SS304 or SS316
  • Seal Material:PTFE
  • Max. Working Pressure:100psi
  • Max. Working Temperature:120 degree C
  • Availably size:DN8-DN100 or 1/4" - 4"
  • Operated:Handle,Actuators

The three piece body design of the Triad Series offers many advantages, including installation flexibility, elimination of the need for two sets of flanges, and ease of in line and out of line servicing. These time-saving features are beneficial for process industries, automated valves and welded piping systems by reducing costly downtime. During maintenance, the actuator and accessories can remain mounted on the valve body. The entire valve and actuator assembly is easily reinstalled with no need for recalibration of the unit.

Screw Connection 3 Piece Bolt Full Port Ball Valve Female With NPT BSPT Thread Ends 0

 Application

Ball Valves are used in a variety of applications including, but not limited to:

Field Gas Plants, Crude Oil Plants, Gas Feed Lines, Polymer Plants,Automated Process Applications,Industrial Gas Processing Plants,LNG Plants,Hydrocarbon Processing,Tank Farms,Oil Refinery Feed Stock Lines



 Advantage

1. They contain a compact and low-maintenance design that requires no lubrication

2. They are cost-effective among all of the valves

3. The biggest advantage of ball valves is that they have poor throttling characteristics that can cause the seat of a ball valve to easily erode.

4. They provide leak-proof service.

5. They open and close quickly.



 Model Selection
Female Thread Ball Valve

 Product Name Screw Thread Floating Ball Valve
 Structure 2 Pieces 3 Pieces
 Pressure 1000WOG
 Power Manual/Actuators
 Connection BSP/BSPT/NPT
 Valve Matreial 1)CF8/SS304               2)CF8M/SS316





Screw Connection 3 Piece Bolt Full Port Ball Valve Female With NPT BSPT Thread Ends 1
