Product Details:
Payment & Shipping Terms:
|
Body Material: | CF8 CF8M | Seat Material: | PTFE |
---|---|---|---|
Power: | Actuators | Connection: | BSPT |
Pressure: | 1000wog | Structure: | Full Port Floating Ball |
High Light: | flanged y strainer,screwed ball valve |

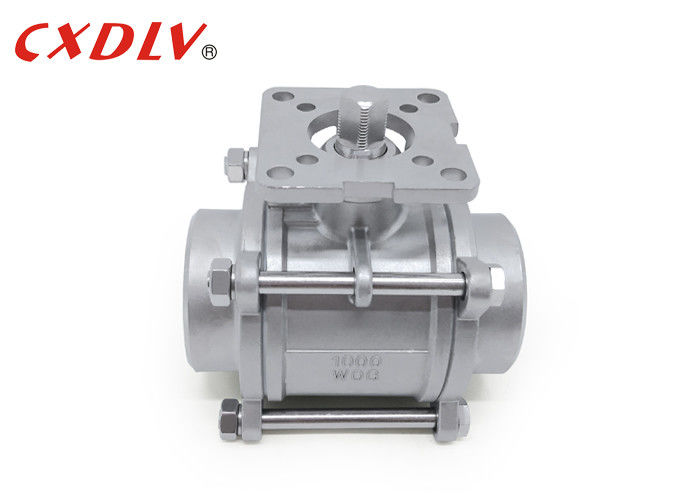

Three Pieces High Platform Female Threaded Ball Valve Motor Automation
Specifications
A ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. The handle or lever will be inline with the port position letting you "see" the valve's position. The ball valve, along with the butterfly valve and plug valve, are part of the family of quarter turn valves. Ball valves are durable and usually work to achieve perfect shutoff even after years of disuse. They are therefore an excellent choice for shutoff applications (and are often preferred to globe valves and gate valves for this purpose). They do not offer the fine control that may be necessary in throttling applications but are sometimes used for this purpose.
Application
Ball Valves are used in a variety of applications including, but not limited to:
Field Gas Plants, Crude Oil Plants, Gas Feed Lines, Polymer Plants,Automated Process Applications,Industrial Gas Processing Plants,LNG Plants,Hydrocarbon Processing,Tank Farms,Oil Refinery Feed Stock Lines
Advantage
1. They contain a compact and low-maintenance design that requires no lubrication
2. They are cost-effective among all of the valves
3. The biggest advantage of ball valves is that they have poor throttling characteristics that can cause the seat of a ball valve to easily erode.
4. They provide leak-proof service.
5. They open and close quickly.
Model Selection
3 Female Thread Ball Valve
Product Name | 3PC Thread Ball Valve | |||
Pressure | 1000WOG | |||
Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB |
