Product Details:
Payment & Shipping Terms:
|
Body Material: | SS304 | Seat Material: | PTFE |
---|---|---|---|
Actuator: | Double Acting,Single Acting | Pressure: | 1000wog |
Size: | 1/2"~4" | Medium: | Water Oil Gas |
High Light: | flanged y strainer,industrial y strainers |

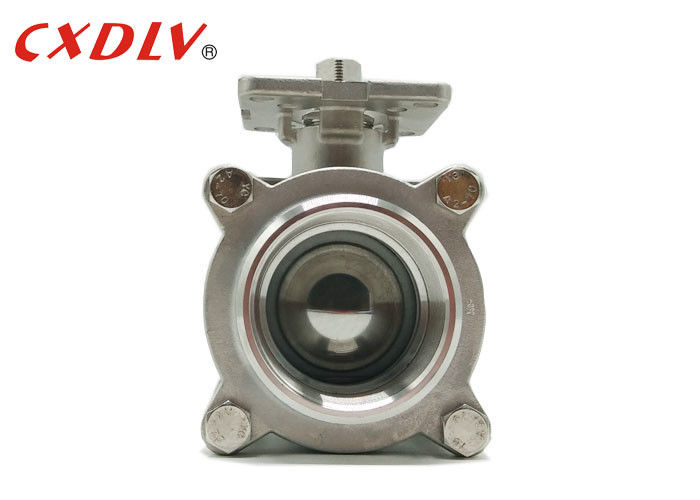

CF8 CF8M BSPT Screw 6 Inch Threaded Ball Valve with High Platform for Direct Mounting
Specifications
A ball valve is a shut-off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. They are characterized by a long service life and provide a reliable sealing over the life span, even when the valve is not in use for a long time. As a result, they are more popular as a shut-off valve then for example the gate valve. Moreover, they are more resistant against contaminated media than most other types of valves. In special versions, ball valves are also used as a control valve. This application is less common due to the relatively limited accuracy of controlling the flow rate in comparison with other types of control valves. However, the ball valve also offers some advantages here. For example, the valve still ensures a reliable sealing, even in the case of dirty media.
Application
Ball Valves are used in a variety of applications including, but not limited to:
Field Gas Plants, Crude Oil Plants, Gas Feed Lines, Polymer Plants,Automated Process Applications,Industrial Gas Processing Plants,LNG Plants,Hydrocarbon Processing,Tank Farms,Oil Refinery Feed Stock Lines
Advantage
1. Anti-static performance: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated by the switching process can be derived.
2. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the spherical body is small, the service life of the pneumatic ball valve is long.
3. The fluid resistance is low, and the pneumatic ball valve is the one with the smallest fluid resistance in all kinds of valve.
4. The valve stem seal is reliable. Because the valve stem only performs the same movement as the lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing capacity increases as the pressure of the medium increases.
Model Selection
3 Female Thread Ball Valve
Product Name | 3PC Thread Ball Valve | |||
Pressure | 1000WOG | |||
Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB |
