Product Details:
Payment & Shipping Terms:
|
Body Material: | SS304 | Seat Material: | PTFE |
---|---|---|---|
Actuator: | Double Acting,Single Acting | Pressure: | 1000wog |
Size: | 1/2"~4" | Medium: | Water Oil Gas |
High Light: | flanged y strainer,screwed ball valve |

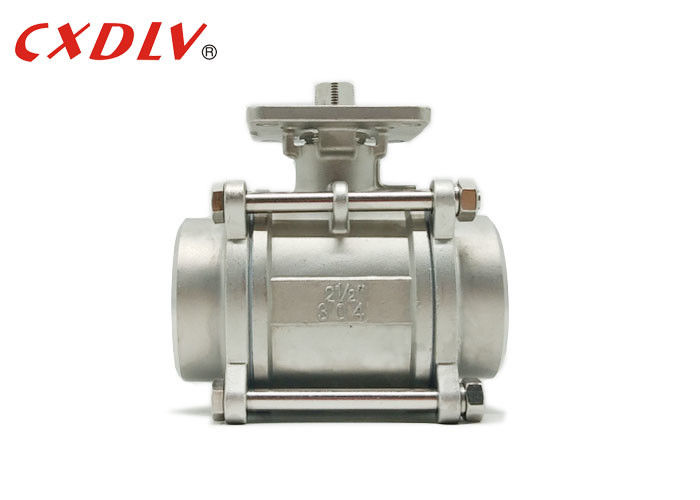

CF8M 1000wog Hydraulic BSPT 1 2 Inch Threaded Ball Valve Price Stainless Steel
Specifications
Ball valves have a spherical closure element with a round or other-shaped hole in it. Aligning the hole with the flow opens the valve, and placing the solid outside of the ball in the flow shuts the valve. The ball rests on a valve seat, and the stem is inserted into the top of the ball. Packing and washers around the stem prevent leakage. A handle for manual actuation is attached to the stem. Stops keep the handle from rotating more than 90 degrees.
Application
Ball Valves are used in a variety of applications including, but not limited to:
Field Gas Plants, Crude Oil Plants, Gas Feed Lines, Polymer Plants,Automated Process Applications,Industrial Gas Processing Plants,LNG Plants,Hydrocarbon Processing,Tank Farms,Oil Refinery Feed Stock Lines
Advantage
1. The fluid resistance is small. When the valve is fully open, the cross-sectional area of the ball passage, the valve body passage and the connecting pipe are equal, and the line is in line. The medium flows through the ball valve, which is equivalent to flowing through a straight pipe, and the fluid of the ball valve in various valves. The resistance is the smallest.
2. Operate quickly, only need to turn the ball 90 ° while opening and closing, convenient and rapid.
3. The structure is simple, the volume is small, and the weight is light. In particular, its height is much smaller than the gate valve and the shut-off valve.
4. The sealing performance is better. Ball valves generally use a soft, flexible seal.
Model Selection
3 Female Thread Ball Valve
Product Name | 3PC Thread Ball Valve | |||
Pressure | 1000WOG | |||
Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB |
