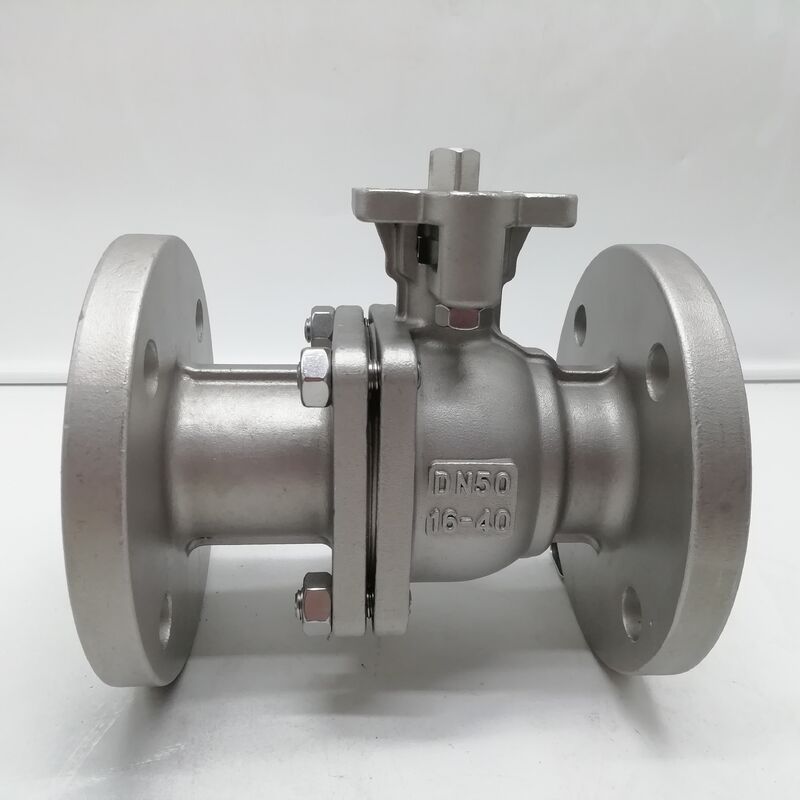

DN50 PN16 Flanged Ball Valve CF8M Stainless Steel Degreased Oxygen Clean Full Bore Floating Ball for Oil Free Service
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | Xidelong |
| Certification: | ISO 9001:2015, CE |
| Model Number: | DN50-PN16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 60-250 / Piece |
| Packaging Details: | Oxygen-clean sealed poly bag with desiccant, export-grade plywood case |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 3000 Pieces per Month |
|
Detail Information |
|||
| Valve Type: | Flanged Floating Ball Valve | Nominal Diameter: | DN50 (2 Inch) |
|---|---|---|---|
| Pressure Rating: | PN16 | Body Material: | Stainless Steel CF8M (316) |
| Ball Material: | Stainless Steel 316 | Stem Material: | Stainless Steel 316 |
| Seat Material: | PTFE | Bore Type: | Full Bore |
| Connection Standard: | EN 1092-1 PN16 | Surface Treatment: | Degreased / Oxygen Cleaned |
| Working Temperature: | -29°C To 180°C | ||
| Highlight: | DN50 PN16 flanged ball valve,CF8M stainless steel ball valve,full bore floating ball valve |
||
Product Description
DN50 PN16 Flanged Ball Valve CF8M — Degreased & Oxygen Clean Full Bore Floating Ball for Oil Free Service
The Xidelong DN50 PN16 Flanged Ball Valve is a premium full-bore floating ball valve specifically processed with degreasing and oxygen-cleaning treatment for oil-free service applications. Manufactured with a CF8M (ASTM A351 Grade 316) stainless steel body, ball, and stem, this valve is engineered to meet the stringent cleanliness requirements of oxygen pipelines, high-purity gas systems, and critical process industries where hydrocarbon contamination is unacceptable.
Degreasing & Oxygen Clean Process
Each valve undergoes a rigorous multi-stage cleaning protocol:
- Alkaline Degreasing Bath: Complete immersion in heated alkaline solution to remove all machining oils, cutting fluids, and surface grease
- Ultrasonic Cleaning: High-frequency ultrasonic cavitation in deionized water to dislodge micro-particulate contaminants from threaded connections and cavity surfaces
- Final Rinse: Multiple deionized water rinses to eliminate residual cleaning agents
- Hot Air Drying: Filtered hot air drying in a cleanroom environment to prevent recontamination
Key Features
| Feature | Benefit |
|---|---|
| CF8M Stainless Steel Construction | Superior corrosion resistance across body, ball, and stem; compatible with high-purity media without metallic ion leaching |
| Full Bore Design | Unrestricted flow path with zero pressure drop; identical to pipe inner diameter for pigging and maximum flow efficiency |
| Blowout-Proof Stem | Bottom-entry stem with integral shoulder prevents stem ejection under pressure; anti-static device between stem and ball ensures electrical continuity |
| ISO 5211 Mounting Pad | Standardized top flange for direct mounting of pneumatic or electric actuators without custom bracket fabrication |
Technical Specifications
- Nominal Diameter: DN50 (2 inch)
- Pressure Rating: PN16 (Class 150 equivalent)
- Body / Ball / Stem: ASTM A351 CF8M (316 Stainless Steel)
- Seat & Seal: Virgin PTFE
- Bore Type: Full Bore
- Design Standard: ASME B16.34
- Flange Standard: EN 1092-1 PN16 (ASME B16.5 Class 150 available on request)
- Face-to-Face: ASME B16.10 Long Pattern
- Fire-Safe: available on request
- Working Temperature: -29°C to +180°C
Target Applications
- Oxygen Pipelines: Air separation units, steel mill oxygen lancing, hospital medical gas systems, oxy-fuel combustion lines
- High-Purity Gas Distribution: Semiconductor fabrication, pharmaceutical manufacturing, laboratory gas supply networks
- Chemical Processing: Solvent transfer, monomer feed lines, reactive chemical systems where hydrocarbon contamination causes side reactions
- Aerospace: LOX / LN₂ ground support equipment, propellant handling systems
Quality Assurance
- 100% shell pressure test at 1.5x rated pressure per API 598
- 100% seat leakage test at 1.1x rated pressure
- Material certificate (EN 10204 3.1) for all pressure-containing parts
Contact Xidelong today for a competitive quotation, technical datasheet, or to discuss your specific oxygen-clean valve requirements.
