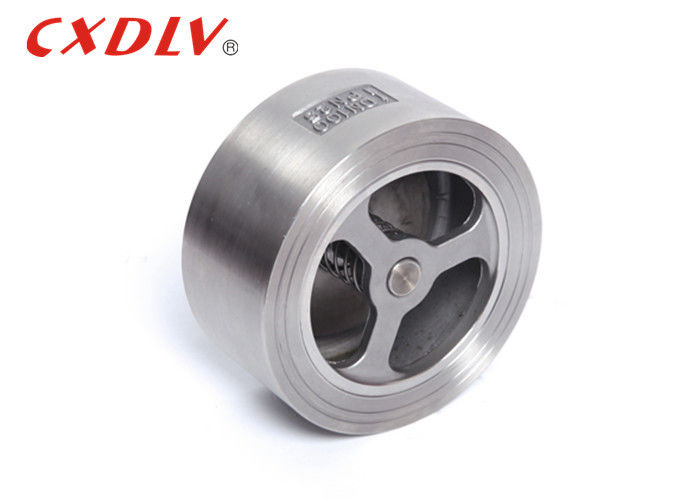

300LB Carbon Steel Wafer Check Valve Lift Type H71H for Chemical Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | PED |
| Model Number: | H71H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Suitable Plywood Cases according to different valves' structure |
| Delivery Time: | 5~25 work days |
| Payment Terms: | T/T,L/C,,D/A,D/P,Western Union,MoneyGram |
| Supply Ability: | 2000pcs per Month |
|
Detail Information |
|||
| Body: | Carbon Steel | Disc: | SS201/SS304 |
|---|---|---|---|
| Seat: | Metal Seat | Port Size: | DN40~DN600 |
| Connection: | Wafer | Standard: | ASME |
| Pressure: | 300LB | Temperature: | -20℃~200℃ |
| Highlight: | 3/4 inch wafer check valve,lift type check valve H71H,chemical processing wafer valve |
||
Product Description
300LB Carbon Steel Wafer Check Valve 3/4" Lift Type H71H
| Model No | H71H | Type | One way valve |
| MOQ | 1 Set | Applicable Standard | ASME |
| Port Size | 3/4 inch | End Connection | Wafer |
| Working Pressure | 300LB | Medium | Water, Oil, Gas, Air |
| Body Material | Carbon Steel | Temp. of Medium | -20℃~200℃ |
| Trim Material | SS201/SS304 | Certificate | PED, ISO |
| Logo Laser Marking | Available for free | Warranty | 1 Year (12 Months) |
| DN | A | L |
|---|---|---|
| 100 | 180 | 22 |
| 125 | 215 | 22 |
| 150 | 250 | 22 |
| 200 | 307 | 28 |
Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump and/or other equipment.
Swing Check Valve has a flat disc that pivots or swings about a hinge pin. They are low cost and have low head loss characteristics when fully open. However, because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessory. They can handle liquids with solids such as wastewater.
- Wafer Type Check Valve weighs much less compared to conventional flanged end swing check valves
- Short overall length allows easy installation in horizontal or vertical pipelines without special pipe support
- The seat is fitted in the body to prevent contact with the flow, resulting in longer seat life
- Minimum head loss due to large orifice size, reducing pump head loss and saving energy
- Short face-to-face dimension makes installation easy between standard gasket and line flanges
Packing Details: We choose suitable plywood cases according to different valves and arrange skilled workers to pack to prevent bruising. Long-term cooperated forwarders handle space booking, customs clearance, and transportation without delay. Transportation options include sea, air, and train, arranged according to customer needs.
Delivery Details: 7-40 days based on order quantity after deposit.
We usually quote within 3 hours after receiving your inquiry. If you need urgent pricing, please call us or mention it in your email for priority handling.
After price confirmation, you can request samples to check our quality. For blank samples to verify design and paper quality, we provide them free of charge when you cover the express freight.
After paying the sample charge and sending confirmed files, samples are ready for delivery in 3-7 days. They will be sent via express and arrive in 3-5 business days. You can use your own express account or prepay if you don't have an account.
