Bare Stem Full Port 3-Way Flanged End Diverter Ball Valve T-Port
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO |
| Model Number: | Q45F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Opreration: | Actuated | Body Material: | WCB/CF8/CF8M/CF3M |
|---|---|---|---|
| Connection: | Flange | Structure: | Floating Ball Valve |
| Bore: | T-Bore | Model No: | Q45F-16 |
| Seat Material: | PTFE,PPL,Dakin PTFE | ||
Product Description

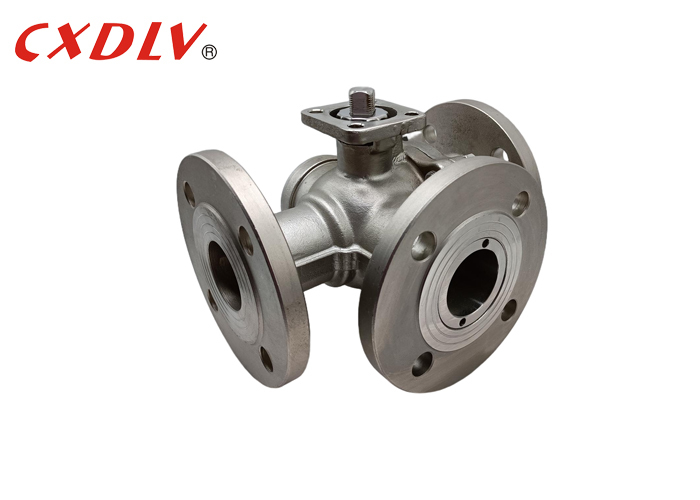

Bare Stem Full Port 3-Way Flanged End Diverter Ball Valve T-Port
Specifications
Full Port 3 Way Ball Valve
Applicable Standards:
- Design and Manufacturing:GB12237-89
- Connection:HG/T20592,GB/T9113
- Fireproof Test: API607 4th 1993
- Test and Inspection:GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C
Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.
| Pressure | Size | L | L1 | D | D1 | D2 | Z-φd | ISO5211 φD |
4-φW |
| PN16 | 32 | 200 | 100 | 140 | 100 | 78 | 4-18 | F5-F7 | 4-φ8 |
| 40 | 220 | 110 | 150 | 110 | 88 | 4-18 | F7-F10 | 4-φ10 | |
| 50 | 240 | 120 | 165 | 125 | 102 | 4-18 | F7-F10 | 4-φ10 | |
| 65 | 260 | 130 | 185 | 145 | 122 | 4-18 | F7-F10 | 4-φ10 | |
| 80 | 280 | 140 | 200 | 160 | 138 | 8-18 | F10-F12 | 4-φ12 |
Application
1. Refineries
2. Petrochemical
3. Chemical Process Equipment
4. Process Control Applications
5. Water and Waste applications
6. Pipeline applications
Features
1. Locking handles that lock at 90 degrees and intervals up to 360 degrees
2. Quality investment cast components
3. Antistatic grounding devices
4. ISO-type actuator mounting configurations
5. Available in a variety of special seat materials
