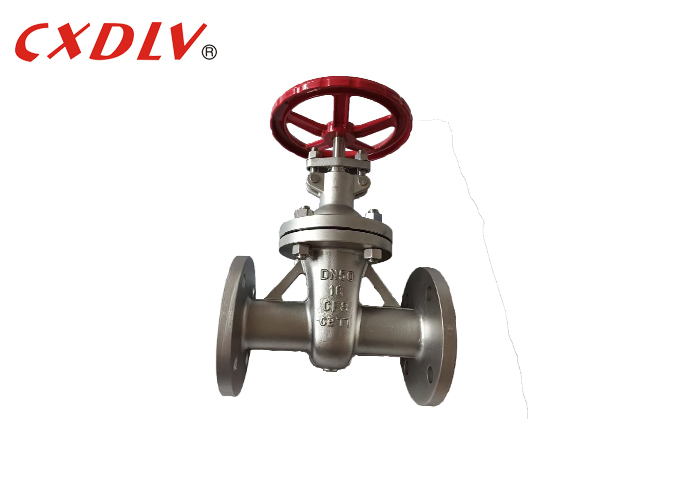

Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port
Product Details:
| Place of Origin: | China |
| Brand Name: | CXDLV |
| Certification: | CE&ISO |
| Model Number: | Z45W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Suitable Plywood Cases according to different valves structure |
| Delivery Time: | 5~25 Work Days |
| Payment Terms: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Ability: | 500pcs/Mon |
|
Detail Information |
|||
| Body Material: | CF8,CF8M,A216 WCB,CF3,CF3M | Port: | Full Port |
|---|---|---|---|
| Standard: | ANSI/JIS/GB | Size: | 1/2"~10" |
| Medium: | Water, Oil ,Gas | Pressure: | ANSI150/ANSI300/PN16/PN25 |
| Wedge: | CF8,CF8M,,CF3,CF3M | ||
Product Description
Stainless Steel Flanged Yoke Flexible Wedge Gate Valve Non-rising Stem Full Port
Specifications
Applicable Standards:
- Design and Manufacture according to ASME B16.34,API608
- Face to face according to ASME B16.10
- End Flanges according to ASME B16.5
- Inspection and test according to API 598
Size Range:
- 1/2"~10"
Pressure Rating:
- PN16/PN25/PN40, ANSI150/300,JIS10K
Temperature Range:
- -20°C~185°C
Wedge:
- Flexible,
Construction:
- NRS(Non-Rising Stem)
Application
Gate valves are used across a wide range of applications. They come in multiple sizes and configurations for use in general service on water, oil, or compressed gas. Specialized models are recommended for fire main shutoff and distribution service.
Stainless steel non-rising stem gate valves are widely used in water supply and drainage systems such as those of municipal facilities, building construction and water source projects where high water quality is required. Since the valve adopts the non-rising stem structure, it is also widely used in the applications where installation space is required.
- Good sealing performance, compact structure, saving installation space
- Media flow direction is unrestricted
- Small fluid resistance
- Corrosion resistant, long service life
| SIZE | L(RF) | d | H | H1 | W | W1 |
| 1 1/4" | 140 | 32 | 300 | / | 180 | / |
| 1 1/2" | 165 | 38 | 395 | / | 200 | / |
Feature
1)Product features: meet the requirements of advanced standards at home and abroad, reliable seal, excellent performance, beautiful shape.
2)The sealing pair is advanced and reasonable, the sealing surface of gate and valve seat is surfacing welded with hard alloy of different hardness, the sealing is reliable, high hardness, wear-resisting, high temperature resistance, corrosion resistance, good abrasion resistance and long life.
3) valve stem by conditioning and surface nitriding treatment, has a good corrosion resistance, abrasion resistance and wear resistance. It can use a variety of piping flange standards and flange sealing surface form, to meet the needs of various projects and user requirements.
4)Scope of use: this product can be used in petroleum, chemical and other industries.
Model Selection
Gate Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K | PN16/PN40 |
| Valve Material | 1) CF8/SCS13/SS304 2) CF8M/SCS14/SS316 3) CF3/SS304L 4) CF3M/SS316L | |||
| Operated Type | Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc. | |||
