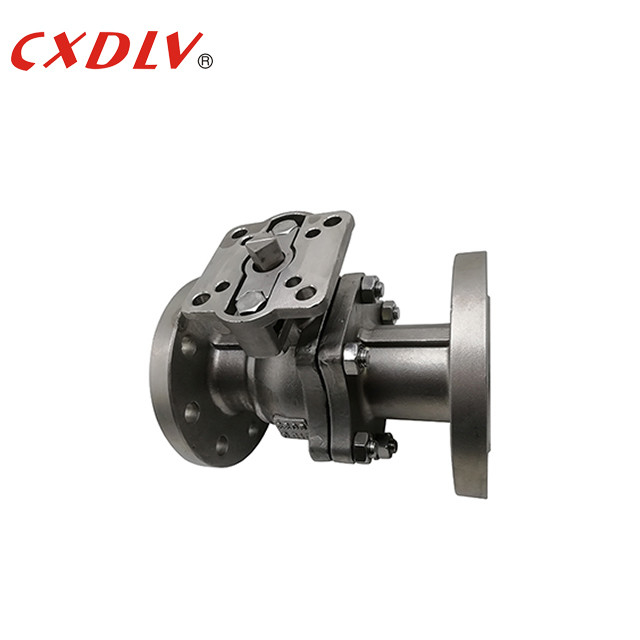

150LB RF Full Bore Floating Stainless Steel Ball Valve with Soft Seat PTFE PPL POB

MOQ: 1pc
Price: FOBUS$28~US$750/pc
Standard Packaging: Suitable Plywood Cases according to different valves' structure
Delivery Period: 5~25 work days
Payment Method: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Capacity: 5000pcs per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE,ISO,TS
Model Number
Q41F-150LB
Body:
CF8,CF8M,WCB...
Seat:
PTFE,RPTFE
Structure:
Full Bore
Port Size:
DN15~DN200
Connection:
Flange
Standard:
ANSI,ASME,API ,DIN, JIS,BS, GB
Pressure:
1.0~6.4MPa
Operation:
Pneumatic,Electric
Highlight:

Soft Seat Stainless Steel Ball Valve

,

Full Bore Stainless Steel Ball Valve

,

150LB Stainless Steel Ball Valve

Product Description

150LB RF Full Bore Floating Ball Valve with Soft Seat PTFE PPL POB

               Ball Valve Features

  High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing: GB12237-89

- Flange Connection: JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection: GB/T13927-1992

Size Range:
- DN15 ~ DN200

Pressure Rating:
- PN16,PN25,PN40,PN63

Body Material:

- CF8,CF8M,WCB,CF3,CF3M,Duplex Stainless Steel...

Seat Material:

- PTFE,PPL,POB...

Temperature Range:
- 20°C~280°C

Accessories:

- pnematic actuator,electric actuator,worm gear,manual override,solenoid valve,limit switch,filter

OEM WELCOMED



                Ball Valve Dimension

150LB RF Full Bore Floating Stainless Steel Ball Valve with Soft Seat PTFE PPL POB 0

(Unit:mm)

Pressure DN Size L D
PN16 15 1/2" 130 95
20 3/4" 140 105
25 1" 150 115
32 1-1/4"" 165 135



                  Advantages of Ball Valve

  • With lowest flow resistance
  • It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
  • In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
  • Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
  • Manufactured in different sizes providing flexibility in selection
  • Provide safe service under high pressure and high temperature conditions
  • Compared with other valves,they are controlled with less force.

                  Ball Valve Applications

Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.

They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.



                         More Selection

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN16/PN25 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model



150LB RF Full Bore Floating Stainless Steel Ball Valve with Soft Seat PTFE PPL POB 1
