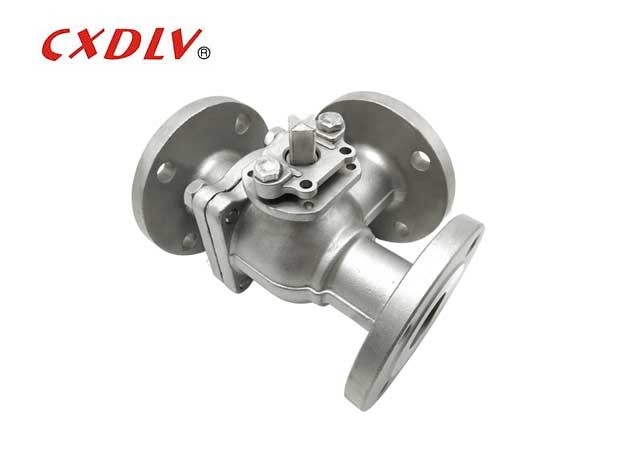

Manual Low Platform Stainless Steel 3 Way Ball Valve flange Connetion T Type DN50 DN 80 DN 100

Manual Low Platform Stainless Steel 3 Way Ball Valve flange Connetion T Type DN50 DN 80 DN 100

MOQ: 1
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q44/45F
Material:
CF3.CF3M.CF8.CF8M.WCB
Standard:
ANSI,ASME,API,DIN,JIS,GB
Connetion:
Flange
Seat:
PTFE,RPTFE,POB
Highlight:

DN50 3 Way Ball Valve

,

Manual 3Way Ball Valve

,

DN100 Stainless Steel Ball Valve

Product Description

Manual Low Platform Stainless Steel 3 Way Ball Valveflange Connetion T Type DN50 DN 80 DN 100

XIDELONG Worm Gear Three Way Stainless Steel Flange Ball Valve
Model
Q45-WG
Operation
Worm Gear
MOQ
1 Set
Port
T-PORT
Applicable Standard
GB
No. of Ways
3 Way
Port Size
4 inch
End Connection
Flange
Operating Pressure
0 to 1.6MPa
Media
Water, Oil, Gas, Air
Body Material
Stainless Steel
Temp. of Media
-20°C to 180°C
Valve Ball
Stainless Steel
Certification
PED,ISO
Sealing Material
PTFE
Warranty
1 Year (12 Months)




Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.







Pressure Size L L1 D D1 D2 Z-φd ISO5211
φD
4-φW
PN16 15 130 65 95 65 45 4-14 F5 4-φ6
20 160 80 105 75 55 4-14 F5-F7 4-φ8
25 180 90 115 85 68 4-14 F5-F7 4-φ8
32 200 100 135 100 78 4-18 F5-F7 4-φ8
40 220 110 145 110 88 4-18 F7-F10 4-φ10
50 240 120 160 125 102 4-18 F7-F10 4-φ10
65 260 130 180 145 122 4-18 F7-F10 4-φ10
80 280 140 195 160 138 8-18 F10-F12 4-φ12
100 320 160 215 180 158 8-18 F10-F12 4-φ12
125 280 190 245 210 188 8-18 F12-F14 4-φ16
150 440 220 280 240 212 8-23 F14-F16 4-φ16
200 550 275 335 295 268 12-23 F14-F16 4-φ16



Advantages of Ball Valve

  • With lowest flow resistance
  • It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
  • In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
  • Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
  • Manufactured in different sizes providing flexibility in selection
  • Provide safe service under high pressure and high temperature conditions
  • Compared with other valves,they are controlled with less force.



FAQ

1. When can I get the price?

We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.

3. How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

4. How long does the whole procedure being worked out?

After you place a order,the production handling time is about 45-60 days. We need 15 days to prepare all the stuff then 30 days for manufacturing.

5. What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 25-40 days. It also denpends on which coutry and port you are. It could be shorter if you need to send the goods like Asian.



If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
