| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal |
| Supply Capacity: | 500pcs/Mon |

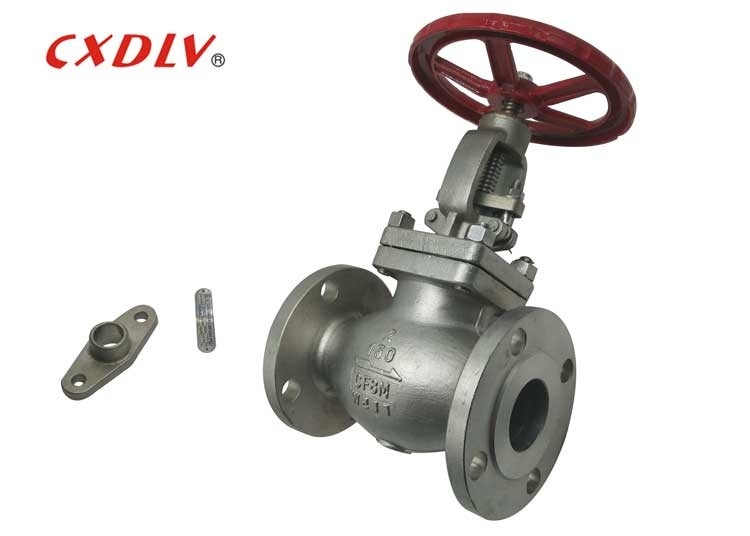

Industrial Globe Valve High Pressure Pneumatic Motive ANSI Manual Stainless Steel 150 Class
Specifications
- Design Standard:ANSI B16.34 / API 600 / API 602
- Inspection & Test: API 598
- Face To Face: ANSI B16.10
- Flange Connection: ANSI B16.5 (For NPS≤24) / ANSI B16.47 SERIES B, ANSI 16.47 SERIES A, MSS SP-44 (For NPS >24)
Application
The globe valve, also called the door, is the most widely used type of valve. It is popular because of the small friction between the sealing surfaces during the opening and closing process. It is relatively durable, the opening height is not large, and the manufacturing is easy. Convenient, not only for medium and low pressure, but also for high pressure.Depending on the form of movement of the flap, the change in the seat opening is proportional to the flap travel. Due to the relatively short opening or closing stroke of the valve stem of this type of valve, and the very reliable cutting function, and because the change of the valve seat opening is proportional to the stroke of the valve flap, it is very suitable for the adjustment of the flow rate. Therefore, this type of shut-off globe valve is well suited for shut-off or regulation and throttling.The valve plays an important role in the cutting and throttling of the medium in the pipeline in which it is located. The shut-off valve is an extremely important type of shut-off valve. The seal is applied by applying torque to the valve stem, and the valve stem is oriented in the axial direction. The flap exerts pressure so that the disc sealing surface fits snugly against the seat sealing surface, preventing the medium from leaking along the gap between the sealing faces.
| SIZE | d | L | H | W | D | C | G | T | N-ΦM |
| 1" | 25 | 127 | 212 | 140 | 108 | 79.5 | 51 | 11.1 | 4-16 |
| 1 1/4" | 32 | 140 | 243 | 160 | 117 | 89.5 | 64 | 12.7 | 4-16 |
| 1 1/2" | 40 | 165 | 246 | 160 | 127 | 98.5 | 73 | 14.3 | 4-16 |
| 2" | 50 | 203 | 252 | 200 | 152 | 120.5 | 92 | 15.9 | 4-19 |
| 2 1/2" | 65 | 216 | 308 | 200 | 178 | 139.5 | 105 | 17.5 | 4-19 |
| 3" | 80 | 241 | 327 | 250 | 190 | 152.5 | 127 | 19.1 | 4-19 |
| 4" | 100 | 292 | 384 | 250 | 229 | 190.5 | 157 | 23.9 | 8-19 |
| 5" | 125 | 356 | 484 | 300 | 254 | 216 | 186 | 23.9 | 8-22 |
| 6" | 150 | 406 | 547 | 350 | 279 | 241.5 | 216 | 25.4 | 8-22 |
| 8" | 200 | 495 | 669 | 350 | 343 | 298.5 | 270 | 28.6 | 8-22 |
| 10" | 250 | 622 | 824 | 200 | 406 | 362.5 | 324 | 30.2 | 12-25 |
Feature
1. Globe valve’s structure is more simple than gate valve’s, and it is more convenient in manufacturing and maintenance.
2. Sealing surface is not easy to wear and scratch, and it has a good sealing surface and long service life.
3. When opening and closing, disc’s route is small, so the height of globe valve is smaller than gate valve, but the length of structure is longer than gate valve’s.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Video
Video
Video
Video
Video
Video
|
|
