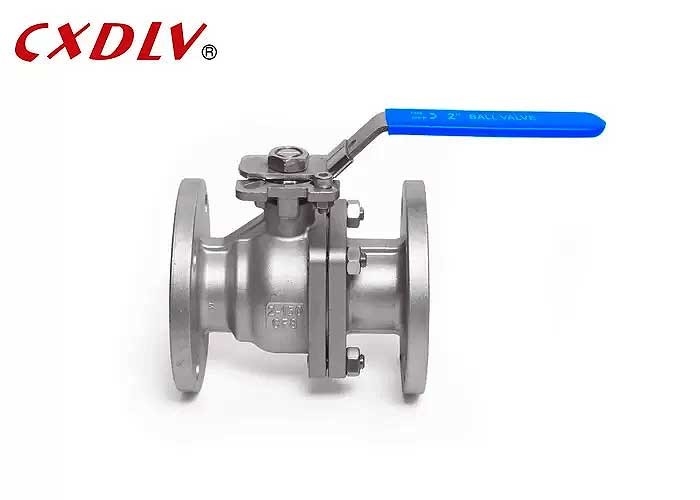

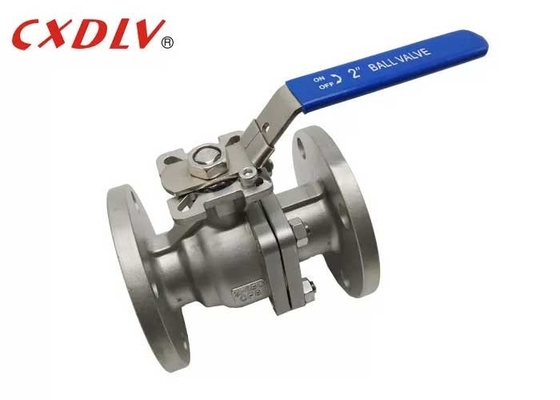

150LB 300LB 2"~ 6 " Flanged END Stainless Steel Ball Valve CF8 CF8MWCB Direct Mounting Pad

150LB 300LB 2"~ 6 " Flanged END Stainless Steel Ball Valve CF8 CF8MWCB Direct Mounting Pad

MOQ: 1
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q41F
Body Material:
CF8/CF8M/CF3/CF3M/WCB
Ball Material:
CF8/CF8M
Seat Material:
PTFE
Standard:
GN/ANSI/JIS/DIN
Size:
1/2"-8"
Medium:
Water Oli Gas
Highlight:

Flanged END Stainless Steel Ball Valve

,

150LB Stainless Steel Ball Valve

,

Flanged Ball Valve 300LB

Product Description

Specifications

Casting Floating Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- 1/2"~8"

Pressure Rating:
- ASME CL, 150, 300
Temperature Range:
- -20°C~185°C



* Class 150LB 2 Piece Stainless Steel Flange Full Port Ball Valve

Flanged Ball Valves have a different connection type than the other ball valves we carry. Meant to be mated with another flanged connection, th e valves allow for easier cleaning and replacement.

150LB 300LB 2"~ 6 " Flanged END Stainless Steel Ball Valve CF8 CF8MWCB Direct Mounting Pad 0



Pressure Size φD L φE φB φC T f N-φh H H1 W M P
Class150 1/2" 13 108 89 60.5 35 11.5 1.6 4-16 48 79 135 9 9
3/4" 19 117 98 70 43 11.5 1.6 4-16 53 84 135 9 9
1" 25 127 108 79.5 51 12 1.6 4-16 64 95 170 11 11
1 1/4" 32 140 117 89 64 13 1.6 4-16 71 103 170 11 11
1 1/2" 38 165 127 98.5 73 15 1.6 4-16 76 111 200 14 14
2" 51 178 152 120.5 92 16 1.6 4-19 85 120 200 14 14
2 1/2" More Specifications,Contact us freely
3"
4"
5"
6"
8"


Application

The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.



Ball Valve Strength

1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve,

butterfly valve, gate valve,globe valve,check valve and so on throughout the world.
2. More than 12 years' experiences in this field and CE,ISO,etc. certificated qualification and extreme

standard let us keep very competitive in the current market.
3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models.
And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. Of course,you can depend on high-quality service. We'll treat every email within 2 hours.

(Usually much faster)

5. Free samples can be sent for testing



Model Selection

2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 300LB PN16/PN25/PN40 10K/20K PN16/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
