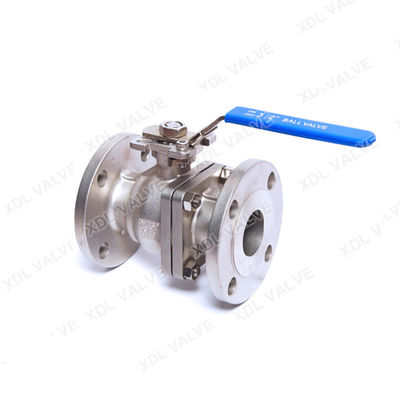

Stainless Steel 304 316L Flanged Ball Valve Cf8m Handle Manual End Connection

Stainless Steel 304 316L Flanged Ball Valve Cf8m Handle Manual End Connection

MOQ: 1
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q41F
Highlight:

Stainless Steel 316L Flanged Ball Valve

,

Cf8m Flanged Ball Valve

,

End Connection Stainless Steel Ball Valve

Product Description

Specifications

DIN Cast Floating Ball Valve

Applicable Standards:
- Design and Manufacturing:DIN 3357/1,2EN12516-1

- Connection:DIN2542~DIN2545,En1092

- Fireproof Test: API607 4th 1993

- Test and Inspection:DIN3230/3,En12266

Size Range:
- DN15 ~ DN200

Pressure Rating:
- DIN PN10 PN16 PN25 PN40
Temperature Range:
- 20 °C ~ 185 °C





RF CF8 CF8M WCB Double Flange Floating Ball Valve Split Body Control Valve 0

PN(Mpa) DN L φE φB φC T f N-φh H H1 W M P A1 A2 B1 B2
1.6 15 115 95 65 45 16 2 4-14 48 79 135 9 9 6 6 36 42
20 120 105 75 58 18 2 4-14 53 84 135 9 9 6 6 36 42
25 125 115 85 68 18 2 4-14 64 95 170 11 11 6 7 42 50
32 130 140 100 78 18 2 4-18 71 103 170 11 11 6 7 42 50
40 140 150 110 88 18 3 4-18 76 111 200 14 14 7 9 50 70
50 150 165 125 102 18 3 4-18 85 120 200 14 14 7 9 50 70
65 170 185 145 122 20 3 4-18 104 153 300 17 17 9 11 70 102
80 180 200 160 138 20 3 8-18 114 163 300 17 17 9 11 70 102
100 190 220 180 158 20 3 8-18 140 182 400 17 17 NON 11 NON 102
125 325 250 210 188 22 3 8-18 183 260 500 27 27 14 NON 125 NON
150 350 285 240 212 22 3 8-22 202 280 800 27 27 14 NON 125 140
200 400 340 295 268 24 3 12-22 253 - 1100 27 27 14 NON 125 140



Application

* Wide range of applications, from small to a few millimeters in diameter, large meters, from high vacuum to high pressure can be applied.
* Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy,aviation, rocket and other departments, as well as people's daily lives.



Advantage of Ball Valve

1. The thrust bearing reduces the frictional torque of the valve stem, which makes the valve stem smooth and flexible for long-term operation.


2. Anti-static performance: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated by the switching process can be derived.


3. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the spherical body is small, the service life of the pneumatic ball valve is long.


4. The fluid resistance is small, and the pneumatic ball valve is the one with the smallest fluid resistance among all kinds of valves.


5. The valve stem seal is reliable. Because the valve stem only performs the same movement as the lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing capacity increases as the pressure of the medium increases.


6. Great sealing performance. The seat is made of elastic material such as PTFE is easy to seal, and the valve sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.



Model Selection

DIN 2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB 300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
