| MOQ: | 1 |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal |
| Supply Capacity: | 500pcs/Mon |

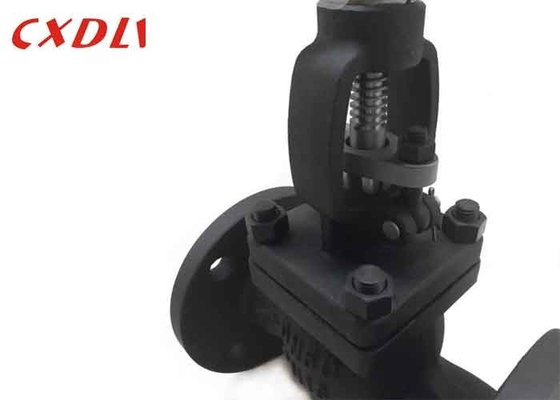

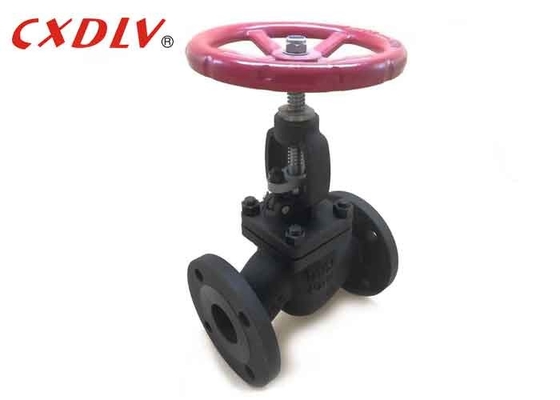

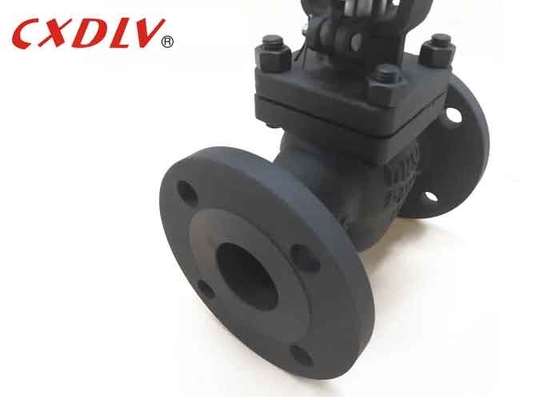

High Light: GLOBE VALVE Normal Temperature Oil industry Manual Operated Cast Steel WCB
Specifications
-Type:Bolted Bonnet
- Design Standard:GB/T12224-2005
- Inspection & Test: JB/T9092-1999
- Face To Face Construction: GB/T12221-2005
- Pressure testing: GB/T13927-1992
Application
A globe valve is for regulating flow in a pipeline, consisting of a movable disk (also called a plug) element and a stationary ring seat typically in a spherical body. The inlet and outlet of the body are separated by an internal baffle. This has an opening that forms a seat onto which the movable disk/plug can be screwed in to close (or shut) the valve.
Globe valves are ideal for fast cycle duties, higher temperatures and control applications. Although they are often used for steam control and in the field of water/waste water treatment, they can handle the most diverse of applications in industrial processes, yet also in sterile and hygienic applications in the pharmaceutical, food and biotechnology industries.
| DN | L | D | D1 | D2 | b | Z-φd | H |
| 15 | 130 | 95 | 65 | 46 | 14 | 4-14 | 188 |
| 20 | 150 | 105 | 75 | 56 | 16 | 4-16 | 188 |
| 25 | 160 | 115 | 85 | 65 | 16 | 4-16 | 212 |
| 32 | 190 | 135 | 110 | 78 | 18 | 4-18 | 285 |
| 40 | 200 | 150 | 110 | 84 | 18 | 4-18 | 246 |
Video
|
|
