cf8m ball valve,stainless steel ball valve 150LB flange end stainless steel ball valve with mounting pad |
||
|---|---|---|---|
Specifications
Ball Valve
Applicable Standards:
- Design and Manufacturing : ASME B16 . 34 , API608
- Connection : JIS B2212 ~ B213
- Test and Inspection : JIS B2003 , API6D
- Face to Face Dimension : JIS B2002
Size Range:
- DN15 ~ DN200
Pressure Rating:
- JIS 10K 20K
Temperature Range:
- - 20 °C ~ 185 °C
The JIS high platform ball valve adopts the Japanese standard design license, and adopts the Japanese standard flange, the Japanese standard structure length, the Japanese standard material standard, and the composite JIS Japanese national standard product.
The structure of JIS high platform ball valve can be installed and installed by any manufacturer. After installation, the seal can be adjusted. This adjustment does not need to disassemble the actuator, which effectively protects the sealing performance.
| Pressure | Size | φD | L | φE | φB | φC | T | f | N-φh | H | H1 | W | M | P | A1 | A2 | B1 | B2 |
| JIS 10K | 15 | 15 | 108 | 95 | 70 | 52 | 12 | 1 | 4-15 | 48 | 79 | 135 | 9 | 9 | 6 | 6 | 36 | 42 |
| 20 | 20 | 117 | 100 | 75 | 58 | 14 | 1 | 4-15 | 53 | 84 | 135 | 9 | 9 | 6 | 6 | 36 | 42 | |
| 25 | 25 | 127 | 125 | 90 | 70 | 14 | 1 | 4-19 | 64 | 95 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 32 | 32 | 140 | 135 | 100 | 80 | 16 | 2 | 4-19 | 71 | 103 | 170 | 11 | 11 | 6 | 7 | 42 | 50 | |
| 40 | 38 | 165 | 140 | 105 | 85 | 16 | 2 | 4-19 | 76 | 111 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 50 | 50 | 178 | 155 | 120 | 100 | 16 | 2 | 4-19 | 85 | 120 | 200 | 14 | 14 | 7 | 9 | 50 | 70 | |
| 65 | Contact us freely | |||||||||||||||||
| 80 | ||||||||||||||||||
| 100 | ||||||||||||||||||
| 125 | ||||||||||||||||||
| 150 | ||||||||||||||||||
| 200 | ||||||||||||||||||
Application
Suitable for general working media such as water, solvent, acid and natural gas, but also suitable for medium with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene, which are widely used in various industries.
Strength of Ball Valve
1. Advanced CERAMIC CASTING technology, reasonable structure and pretty appearance.
2. Valve seat adopts elastic sealing structure, which saves labor, light weight and good sealing performance.
3. The valve stem adopts a reverse-sealed bottom-loading structure, and the valve stem does not fly out due to internal pressure, ensuring safety.
Model Selection

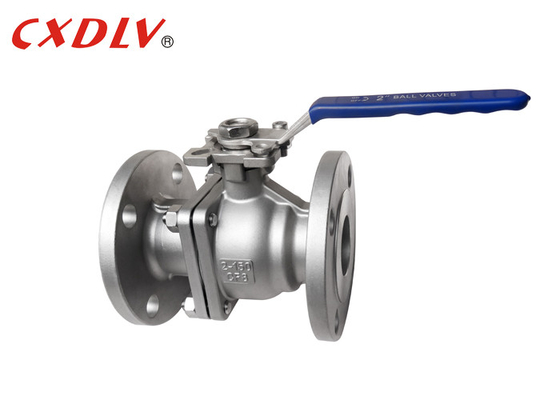

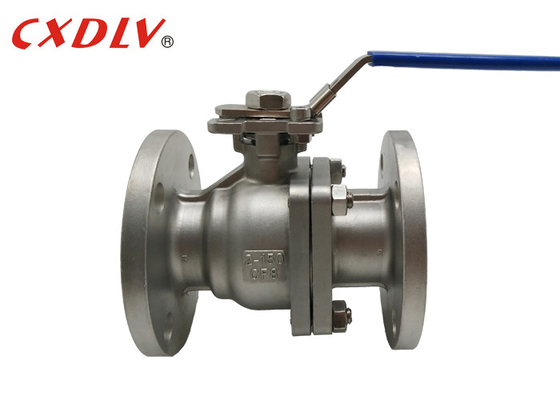

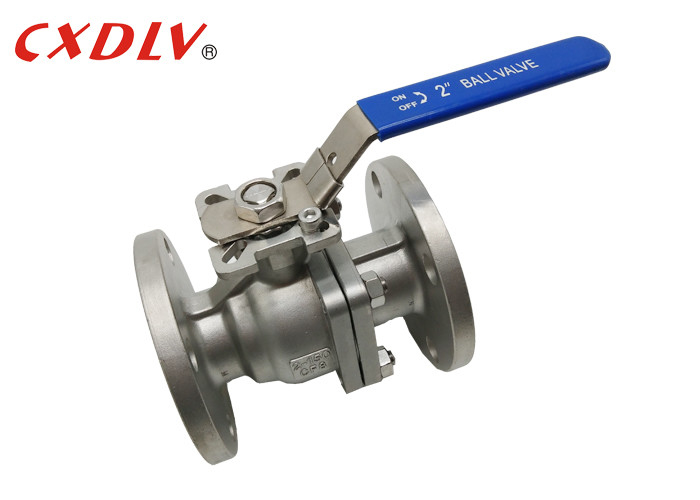

2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model |
|||
