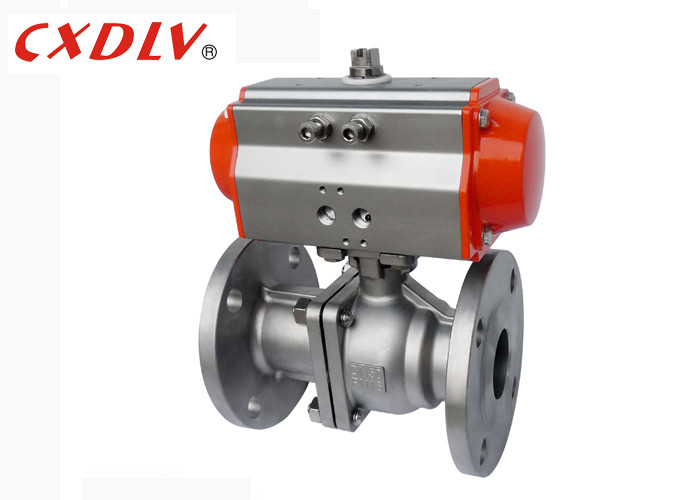

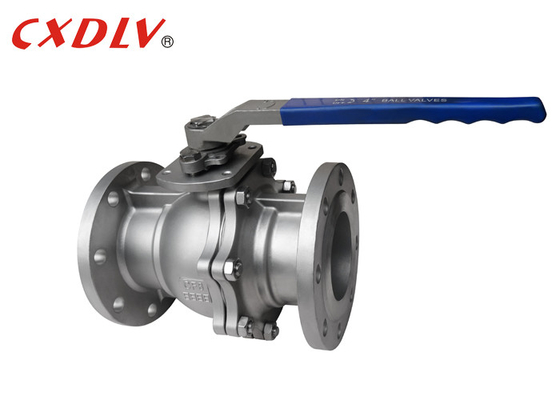

Actuator Flange Ball Valve Double Acting Pneumatic Control Dn80

Actuator Flange Ball Valve Double Acting Pneumatic Control Dn80

MOQ: 1
Price: negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
CE&ISO
Model Number
Q41F
Body Material:
SS316/SS304/WCB
Size:
DN15-200
Standard:
ANSI,ASME,API ,DIN, JIS,BS, GB
Connection:
Flange Ends
Certificate:
CE
Highlight:

Pneumatic Actuator Flange Ball Valve

,

Dn80 Flange Ball Valve

,

Flange Double Acting Ball Valve

Product Description

Specifications

High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Ball valve, the opening and closing member (sphere) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid regulation and control. The multi-way ball valve not only can flexibly control the confluence, splitting, and flow direction switching of the medium, but also can close any channel and connect the other two channels.

Electric Actuator High Pressure Full Port Two Piece Ball Valve Double Flange Ends 0



PN(Mpa) DN L φE φB φC T f N-φh H H1 W M P A1 A2 B1 B2
1.6 15 130 95 65 45 14 2 4-14 48 79 135 9 9 6 6 36 42
20 140 105 75 55 14 2 4-14 53 84 135 9 9 6 6 36 42
25 150 115 85 65 14 2 4-14 64 95 170 11 11 6 7 42 50
32 165 135 100 78 16 2 4-18 71 103 170 11 11 6 7 42 50
40 180 145 110 85 16 3 4-18 76 111 200 14 14 7 9 50 70
50 200 160 125 100 16 3 4-18 85 120 200 14 14 7 9 50 70
65 Contact us freely
80
100
125
150
200


Application

Ball valves are widely used in petroleum refining, long-distance pipelines, chemical, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries.



Advantage

1. Small fluid resistance: pneumatic ball valve is the smallest of the fluid resistance of all valve classification, even the reduced diameter pneumatic ball valve, its fluid resistance is quite small.


2. Stem seal is reliable: Since the valve stem only rotates and does not move up and down, the packing seal of the valve stem is not easy to break, and the sealing capacity increases with the increase of the medium pressure.


3. The sealing performance of the valve seat is good: the sealing ring made of elastic material such as PTFE is easy to seal, and the valve sealing ability of the pneumatic ball valve increases with the increase of the medium pressure.



Model Selection

High Pressure Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN16/PN25 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model

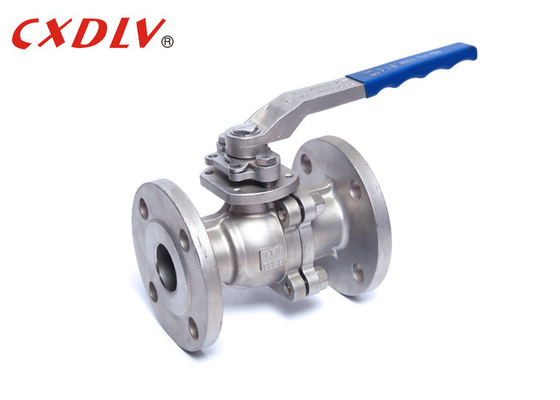

Actuator Flange Ball Valve Double Acting Pneumatic Control Dn80 1
