| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

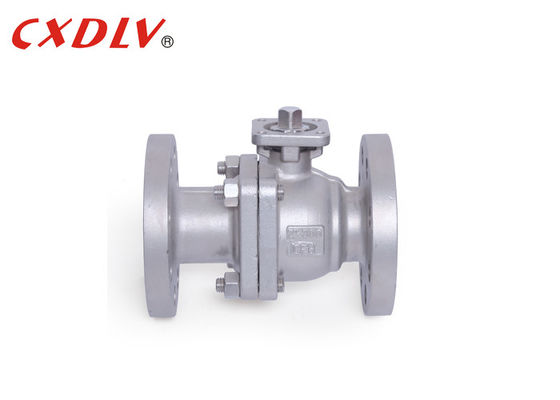

Stainless Steel JIS Standard Flange Floating Ball Valve
Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.
Specifications
| Product Name | DN40 High Quality Double Flange Stainless Steel Ball Valve |
| Model Number | Flange End 2PC Ball Valve |
| Pressure | Class 150 / Class 300 / JIS 10K / JIS 20K |
| Size Range | 1/2" to 8" |
| Type of Port | Full Port |
| Wall Thickness | ASME B16.34 |
| Face To Face | ANSI B16.10 / JIS B2002 |
| End Flanges | ANSI B16.5 / JIS B2220 |
| Material | CF8, CF8M, WCB, Cast Iron |
| Type | Moungting Pad Flange Ball Valve |
| Temperature | Max. 400°F |
| Seat | PTFE / RPTFE |
| Media | Water / Oil / Gas |
| Connection | Flange End |
| Handle sleeve | According to customer requirements |
| Features |
1. INVESTMENT CASTING / SAND CASTING 2. Actuator Mounting Pad 3. Floating Ball 4. Blow-Out Proof System 5. Gear Operation option 6. OEM / ODM Product |
| Quality Inspection | Mill Certificate 3.1 and/or other per your request |
| Pressure Test | API 598 |
| Certification | ISO, CE, CRN, AD2000, API 607 5th Edition, NACE MR-0175 |
| Lead Time | Based on the quantity, sample order available |
| Terms | EX-WORK, FOB, CIF, C&F |
| Payment | T/T, LC Before shipment for first order. |
| Unit:mm | |||||||
| Pressure | Size | L | φE | φB | φC | T | f |
| 10K | 15 | 108 | 95 | 70 | 52 | 12 | 1 |
| 20 | 117 | 100 | 75 | 58 | 14 | 1 | |
| 25 | 127 | 125 | 90 | 70 | 14 | 1 | |
| 32 | 140 | 135 | 100 | 80 | 16 | 2 | |
| 40 | 165 | 140 | 105 | 85 | 16 | 2 | |
| 50 | 178 | 155 | 120 | 100 | 16 | 2 | |
| 65 | 190 | 175 | 140 | 120 | 18 | 2 | |
| 80 | 203 | 185 | 150 | 130 | 18 | 2 | |
| 100 | 229 | 210 | 175 | 155 | 18 | 2 | |
| 125 | 356 | 250 | 210 | 185 | 20 | 2 | |
| 150 | 394 | 280 | 240 | 215 | 22 | 2 | |
| 200 | 457 | 330 | 290 | 265 | 22 | 2 | |
Application
Ball Valves are used for flow and pressure control and shut off for corrosive fluids, slurries, normal liquid and gases.
They are used in the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.
Advantage
1. Light weight, reduced vibrations on pipe lines
2. Quick and easy to close, lever position indicates whether the valve is open or closed
3. Easy to mount: with flanged joints
4. Easy to service and repair: can be removed from the piping without taking off the fastening flanges
5. Reliable and trouble-free operation in all positions and only a slight loss of flow
Model Selection
2PC Full Port Floating Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
Video
Video
Video
Video
Video
Video
|
|
