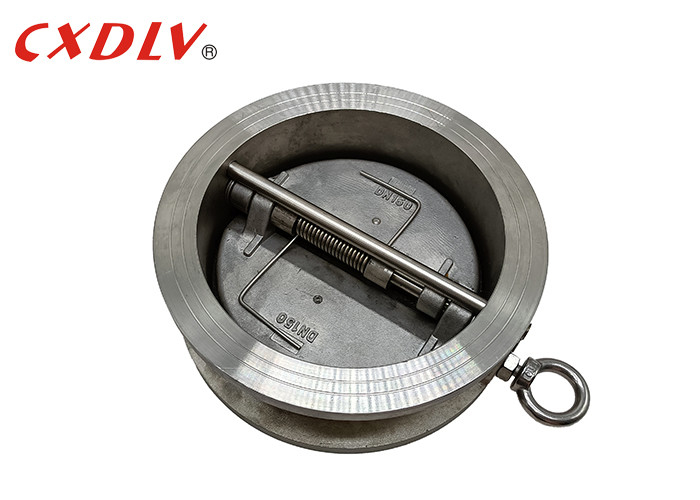

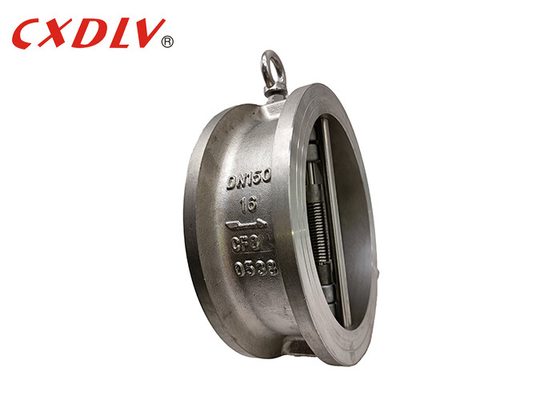

Wafer Dual Discs Check Valve Butterfly Type Body CF8

Wafer Dual Discs Check Valve Butterfly Type Body CF8
Wafer Dual Discs Check Valve Butterfly Type Body CF8

Large Image :  Wafer Dual Discs Check Valve Butterfly Type Body CF8

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE,ISO,TS
Model Number: H76
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: FOBUS$25~US$845/pc
Packaging Details: Suitable Plywood Cases according to different valves' structure
Delivery Time: 5~25 work days
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs per Month
Detailed Product Description
Body: CF8,CF8M,WCB,2205,2507 Disc: SS304,SS316
Seat: Metal Seat,Soft Seat Port Size: DN50~DN500
Connection: Wafer Standard: ANSI,ASME,DIN, JIS,GB
Pressure: PN10~PN40 Application: Water,Oil,Gas...
High Light:

Wafer Dual Discs Check Valve

,

Body CF8 Dual Plate Check Valve

,

Butterfly Type Dual Discs Check Valve

Wafer Dual Discs Check Valve Butterfly Type Body CF8

               (PN16) Dual Plate Check Valve Dimension

Wafer Dual Discs Check Valve Butterfly Type Body CF8 0

(Unit:mm)

DN L D
PN16 PN25  PN16 PN25
100 73 73 162 168
125 86 86 192 194
150 98 98 218 224
200 127 12 273 284



Check Valve Overview



Body:CF8/CF8M/WCB/CF3/CF3M/Duplex Stainless Steel 2205/2507

Spring:SS304/SS316/Inconel

Disc:SS304/SS316+Stellite

Seat:NBR/EPDM/Metal

Shaft1:F316/F304

Shaft2:F316/F304



                  Check Valve Overview

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system.Often applied on the discharge side of pumps,check valves prevent the system from draining if the pump stops and protects against backflow, which could harm the pump and/or other equipment.

Dual Plate Check Valve  They are low cost, and have low head loss characteristics when fully open. But because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessoryy. They can handle liquids with solids such as wastewater.

Features of Dual Plate Check Valve:

  • Short face-to face dimension,which is only 1/4~1/8 of traditional flanged check valve
  • Small volume and light weight,its weight is only 1/2~1/20 of flanged check valve
  • Quickly closed disc,low water hammer pressure
  • It can be used on horizontal and vertical pipe with convenient installation
  • Smooth flow channel an low fluid resistance
  • Agile movement and good sealing performance
  • Short disc travel and low shut off impace force
  • The integral structure is simple and compact with beautiful appearance
  • Long service life and high reliability

                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~40days bosed on you order quantity after deposite.



                   FAQ

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
