1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way

Certification
China Wenzhou Xidelong Valve Co. LTD certification
China Wenzhou Xidelong Valve Co. LTD certification
Xidelong is very much appreciated for the prompt assistance and also after sales service.

—— Mr Teo - Malaysia

“To me, Xidelong means: quality, realistic pricing, punctuality, partnership”

—— Mr Burzan - Argentina

I always feel in safe hands when I work with Xidelong.

—— Sebastian - Poland

We cooperated with Xidelong for some Government projects, the valves are well working and customer is satisfied

—— Mr Hengky - Indonesia

I'm Online Chat Now

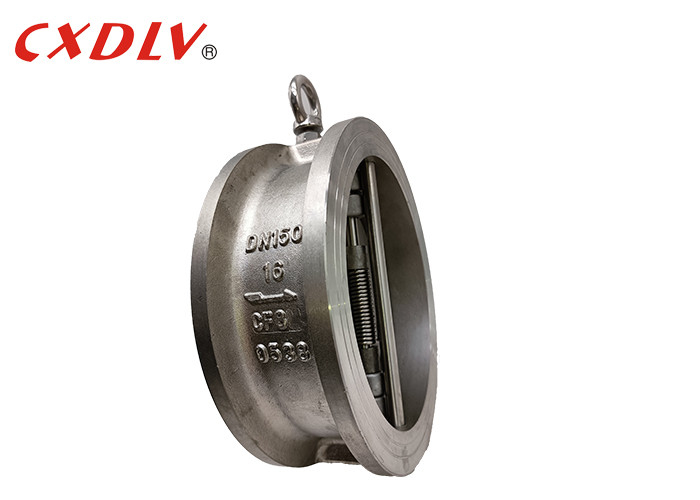

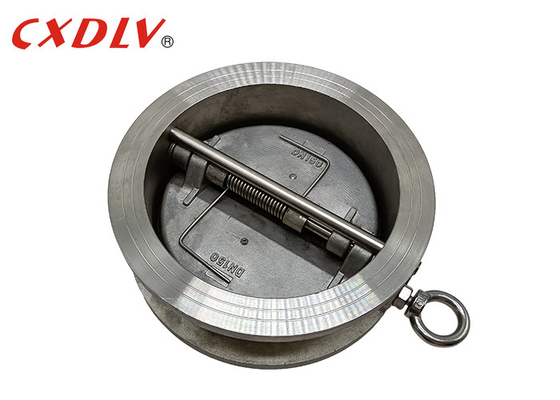

1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way

1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way
1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way

Large Image :  1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way

Product Details:
Place of Origin: Zhejiang,China
Brand Name: CXDLV
Certification: ISO9001:2008&PED 2014/68/EU
Model Number: H77X-16P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Suitable Polywood Cases according to different valves structure
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: 1.4308/1.4408 Medium: Water.Gas.Oil
Size: DN150 Standard: DIN PN16
Body Material: 1.4308/1.4408 Mpa: 1.0Mpa/1.6Mpa
Spring: Inconel X750
High Light:

Wafer Butterfly Dual Plate Check Valve

,

Inconel X750 Dual Plate Check Valve

,

PN16 One Way Dual Check Valve

1.4308 Wafer Butterfly Dual Plate One Way Check Valve PN16​



Dimensional drawing



1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way 0

DN L D D2 D3
50 43 107 52 72
65 46 127 66 88
80 64 142 79 103

1.4308 PN16 Dual Plate Check Valve Wafer Butterfly One Way 1



 Specifications



Design According to AP1594. API6D. JB/T8937
Face to face according to API594. API6D. DIN3202. JB/T8937
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to ANSI B 16.50. DIN2401. GB/T9124. JB/T74



 Application



The Dual Plate, Wafer Check Valve employs two-spring-loaded plates hinged on a central hinge pin. The inside of the valve is composed of two semicircular springs and a plate surface, and is fixed on the valve body by a pin, and the spring is deformed to close the valve plate, and the fluid pressure causes the spring to open. The deformation is fast, which protects the pipe from water hammer damage.






 Feature



1.Compact wafer-style, one-piece design;

2.Center post fully supports the internal assembly without external pins or plugs;

3.Maximum flow area reduces pressure loss;

4.The dual-plate design produces increased strength with reduced opening and closing time;

5.Torsion springs assist valve plate closure, preventing flow reversal. Consistent valve response ensures against slamming and water hammer

6.The shaft features heavy-duty, corrosion-resistant construction;

7.Shaft supports act as stops to prevent over-travel of valve plates. They are corrosion-resistant with large shaft-bearing surfaces and are easily removable for internal assembly, maintenance or change.

8.Thrust washers reduce friction and wear of valve plate hinges.
