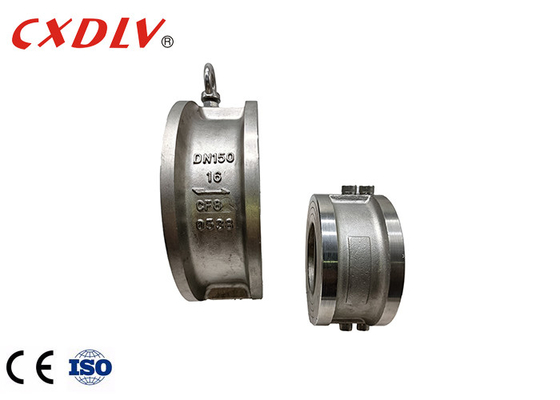

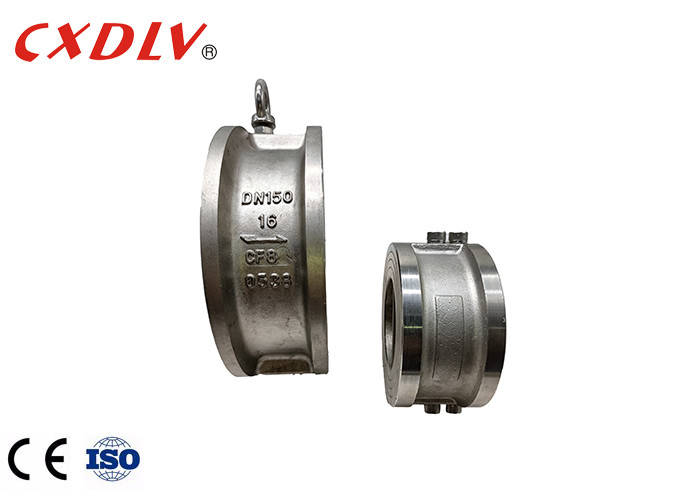

DIN3202 PN16 Dual Plate Wafer Check Valve Non Return CF8 Body DN600

DIN3202 PN16 Dual Plate Wafer Check Valve Non Return CF8 Body DN600
DIN3202 PN16 Dual Plate Wafer Check Valve Non Return CF8 Body DN600

Large Image :  DIN3202 PN16 Dual Plate Wafer Check Valve Non Return CF8 Body DN600

Product Details:
Place of Origin: Zhejiang,China
Brand Name: CXDLV
Certification: ISO9001:2008&PED 2014/68/EU
Model Number: H77
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Suitable Polywood Cases according to different valves structure
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Disc Material: CF8M/CF8/CF3/CF3M/WCB Medium: Water.Gas.Oil
Size: DN50~DN600 Standard: DIN3202
Body Material: CF8M/CF8/CF3/CF3M/WCB Mpa: 1.0Mpa/1.6Mpa/2.5Mpa
Spring: SS304/SS316/Inconel X750
High Light:

DN600 Dual Plate Wafer Check Valve

,

DIN3202 Dual Plate Check Valve

,

Wafer Non Return Check Valve

DIN3202 PN16 Dual Plate Wafer Non Return Check Valve CF8 Body







 Dimensional drawing



DIN3202 PN16 Dual Plate Wafer Check Valve Non Return CF8 Body DN600 0

DN L D D2 D3
50 43 107 52 72
65 46 127 66 88
80 64 142 79 103
100 64 161 99 122



Specifications



Design According to GB/T12237
Face to face according to DIN3202.
Pressure & Temperature Rating according to DIN2526
Test & inspection According to EN12266



Application



The Dual Plate, Wafer Check Valve employs two-spring-loaded plates hinged on a central hinge pin. The inside of the valve is composed of two semicircular springs and a plate surface, and is fixed on the valve body by a pin, and the spring is deformed to close the valve plate, and the fluid pressure causes the spring to open. The deformation is fast, which protects the pipe from water hammer damage.



 Feature



1.Compact wafer-style, one-piece design;

2.Center post fully supports the internal assembly without external pins or plugs;

3.Maximum flow area reduces pressure loss;

4.The dual-plate design produces increased strength with reduced opening and closing time;

5.Torsion springs assist valve plate closure, preventing flow reversal. Consistent valve response ensures against slamming and water hammer

6.The shaft features heavy-duty, corrosion-resistant construction;

7.Shaft supports act as stops to prevent over-travel of valve plates. They are corrosion-resistant with large shaft-bearing surfaces and are easily removable for internal assembly, maintenance or change.

8.Thrust washers reduce friction and wear of valve plate hinges.





 Package&Delivery



Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details: according to the order, 7~60days



 FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer for more than 16years.

Q: How long is your delivery time?

A: According to the order,7~60days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
