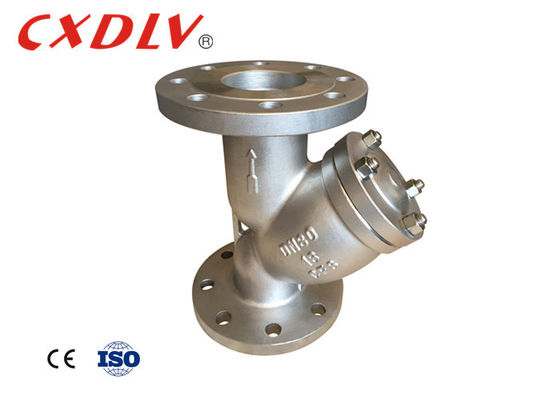

Carbon Steel Flanged Ends Y Strainer Valve With Mesh 80 PN16 RF

Carbon Steel Flanged Ends	Y Strainer Valve With Mesh 80 PN16 RF
Carbon Steel Flanged Ends	Y Strainer Valve With Mesh 80 PN16 RF Carbon Steel Flanged Ends	Y Strainer Valve With Mesh 80 PN16 RF

Large Image :  Carbon Steel Flanged Ends Y Strainer Valve With Mesh 80 PN16 RF

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: ISO9001:2008 CE
Model Number: GL41H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Body Material: CF8/CF8M/CF3/CF3M/WCB Size: DN150~DN200
Connection: Flange End Power: Manual
GASKET: PFTE Working Temperature: ≤200℃
Mesh: 40/80/120
High Light:

Flanged End Y Strainer Valve

,

Carbon Steel Y Strainer Valve

,

PFTE Gasket Y Strainer Valve

Carbon Steel Y Strainer Flanged Ends with Mesh 80 PN16 RF

Specifications

Nominal pressure:  PN1.6-6.4
Strength testing pressure: PT1.5PN
Applicable temperature: -29~180
Applicable media:Water.Oil.Gas

Application
Y-type strainer valve is suitable for domestic and industrial liquids in the production of petroleum, chemical, chemical fiber, light industry, water treatment, municipal engineering, etc., to filter solid impurities. It is usually installed in front of the pump, compressor inlet or flow meter, pipeline valve, and piping equipment to protect equipment and piping from blockage and wear.
Y-type strainer are usually installed at the inlet end of pressure reducing valves, pressure relief valves, fixed water level valves or other equipment to remove impurities from the media to protect the normal use of valves and equipment. It can also be used for filtration of large particles in gas or other media. It can be installed on the pipeline to remove large solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.) and instruments can work and operate normally, and the process is stabilized. The role of safe production. The Y-type filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil network is 100~480 mesh.
Carbon Steel Flanged Ends	Y Strainer Valve With Mesh 80 PN16 RF 0Carbon Steel Flanged Ends	Y Strainer Valve With Mesh 80 PN16 RF 1

SIZE d D D1 D2 t C n-φb L
DN15 15 95 65 45 2 14 4-14 120
DN20 20 105 75 58 2 14 4-14 140
DN25 25 115 85 68 2 14 4-14 155
DN32 32 135 100 78 2 16 4-18 180
DN40 40 145 110 88 3 16 4-18 200
DN50 50 160 125 102 3 16 4-18 220


 Feature


1. The Y-type filter adopts the 316L stainless steel sintered filter for the first time. It has high strength, high precision, corrosion resistance and the highest filtration precision.
2. The Y-type filter adopts the patented internal mechanical structure to realize the high-pressure backwash function in the true sense. The external high-pressure backwashing of the filter screen combined with the internal self-priming and sewage discharge can easily and thoroughly remove the impurities trapped by the filter. There is no dead angle in the cleaning, and the flux is not attenuated, which ensures the filtration efficiency and long service life.
3. The Y-type filter cleaning differential pressure signal is transmitted by differential pressure transmitter, which overcomes the disadvantage of large differential pressure switch error.
4. The transmission device is built-in, sealed and isolated from the overcurrent components, and designed with trip protection to prevent the motor or the body.
5, Y-type filter sewage outlet relies on hydraulic sealing, no need for solenoid valves or other vulnerable seals, simple and practical.
6. The inlet and outlet flanges are designed as movable structures, which can be rotated and adjusted to facilitate the on-site installation.
7. The internal anti-corrosion of Y-type filter adopts special non-toxic anti-corrosion material, which has good weather resistance, acid and alkali resistance, salt spray resistance,
8. Y-type filter electrical system adopts integrated control mode, which can realize remote control.


 Package&Delivery

Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days

 FAQ

Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
