Product Details:
Payment & Shipping Terms:
|
Pressure: | PN40 | Body Material: | CF8/WCB |
---|---|---|---|
Ball: | SS304 | Seat Material: | PTFE/POB/PPL |
Operation: | ISO5211 Mounting Pad For Actuators | Size: | 1/2"~8" |
Temperature: | -20~150℃ | ||
High Light: | PN40 Water Ball Valve,Investments Casting Water Ball Valve,WCB Water Ball Valve |

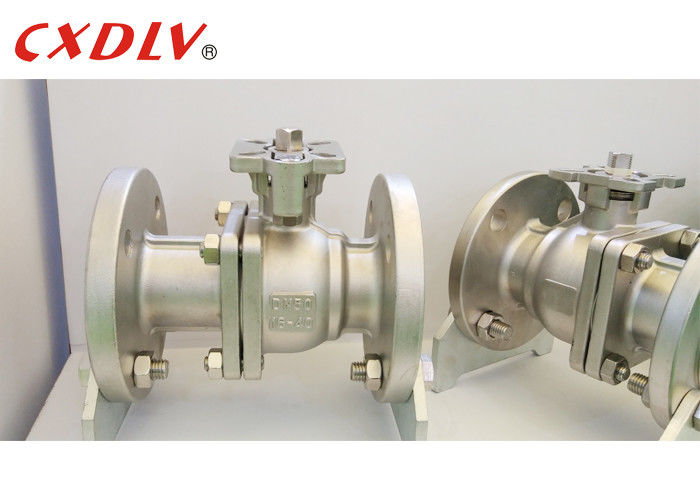

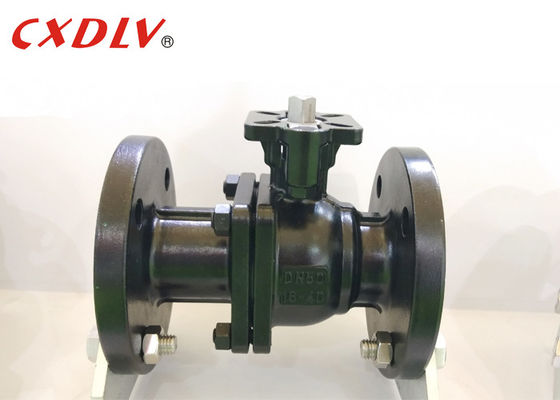

PN40 CF8 WCB Water Ball Valve PTFE Seat Investments Casting
Specifications
Part | Material | ||
Body | CF8 | CF8M | WCB |
Bonnet | CF8 | CF8M | WCB |
Ball | SS304 | SS316 | SS304 |
Seat | PTFE/POB/PPL | ||
Stem | SS304 | SS316 | 201 |
Washer | PTFE | ||
Disc Spring | SS304 |
Pressure | Size | L | D | D1 | D2 | b | f |
DIN PN16 | 65 | 170 | 185 | 145 | 122 | 18 | 3 |
100 | 190 | 220 | 180 | 158 | 20 | 3 | |
150 | 350 | 285 | 240 | 212 | 22 | 3 |
How does it work?
The ball valve working mechanism works this way.Whether it is manually or actuator operated,some force moves the lever or handle to a quarter turn to open the valve. This force is transferred to the stem, moving the disc to open.
The ball disc turns and its hollowed side faces the flow of media.At this point, the lever is in the perpendicular postion and the port to parallel in relation to the flow of media.There is a handle stop near the connection between the stem and bonnet to only allow a quarter-turn.
To close the valve, the lever moves back a quarter turn.The stem moves to turn the ball disc in the opposite direction,blocking the flow of media.The lever is in the parallel position and the port, perpendicular.
Application
The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.
