Product Details:
Payment & Shipping Terms:
|
| Standard: | DIN | Pressure: | PN16 |
|---|---|---|---|
| Ball: | SS304 | Body Material: | WCB |
| Seat Material: | PTFE | Operation: | ISO5211 Mounting Pad For Actuators |
| Size: | 1/2"~8" | Temperature: | -20~150℃ |
| High Light: | WCB Casting Steel Ball Valve,DN65 Casting Steel Ball Valve,DIN PN16 Steel Ball Valve |
||

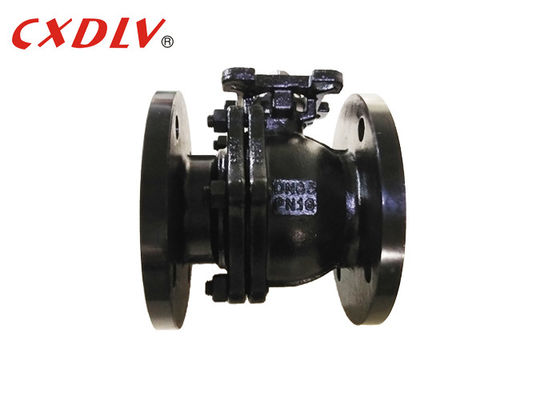

DIN PN16RF WCB Casting Steel DN65 Ball Valve with IS05211 Mounting Pad for Pneuamtic Actuator
Specifications
| Part | Material | ||
| Body | CF8 | CF8M | WCB |
| Bonnet | CF8 | CF8M | WCB |
| Ball | SS304 | SS316 | SS304 |
| Seat | PTFE/POB/PPL | ||
| Stem | SS304 | SS316 | 201 |
| Washer | PTFE | ||
| Disc Spring | SS304 | ||
| Pressure | Size | L | D | D1 | D2 | b | f |
| DIN PN16 | 65 | 170 | 185 | 145 | 122 | 18 | 3 |
| 100 | 190 | 220 | 180 | 158 | 20 | 3 | |
| 150 | 350 | 285 | 240 | 212 | 22 | 3 |
Application
The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.
About Xidelong
1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve,
butterfly valve, gate valve,globe valve,check valve and so on throughout the world.
2. More than 12 years' experiences in this field and CE,ISO,etc. certificated qualification and extreme
standard let us keep very competitive in the current market.
3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models.
And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. Of course,you can depend on high-quality service. We'll treat every email within 2 hours.
(Usually much faster)
5. Free samples can be sent for testing
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
