PPL Seat Flanged End Ball Valve Lever Operation With Extended Stem

PPL Seat Flanged End Ball Valve Lever Operation With Extended Stem

MOQ: 1pc
Price: Negotiation
Standard Packaging: Suitable Plywood Cases according to different valves structure
Delivery Period: 5~25 Work Days
Payment Method: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Capacity: 500pcs/Mon
Detail Information
Place of Origin
China
Brand Name
CXDLV
Certification
ISO&TS
Model Number
Q71F
Product Name:
Ball Valve
Valve Material:
CF8,CF8M,CARBON STEEL
Pressure:
PN16/PN25/PN40
Operation:
Handle Lever
Connection:
Wafer
Model:
Q71F
Highlight:

PPL Seat Flanged End Ball Valve

,

Extended Stem Flanged Ball Valve

,

Lever Operation Flanged Ball Valve

Product Description

1 PC Flanged End Ball Valve Lever Operation PPL Seat With Extended Stem ​



 General Features

Italy Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

Size Range:
- DN15 ~ DN200

 Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 250 °C



Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.

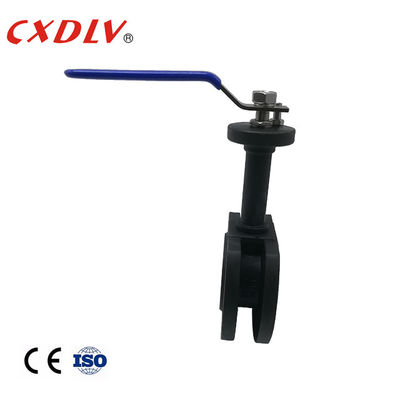

PPL Seat Flanged End Ball Valve Lever Operation With Extended Stem 0

Unit:mm
Pressure Size L D D1 D2
PN16 15 35 95 65 45
20 38 105 75 55
25 42 115 85 65
32 50 135 100 78
40 62 145 110 85





 Application

Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.



 Strength

1. Blow out proof stem design

2. Reduced port design

3. Wafer ball valve structure simple, small size, light weight.

4. Flange Standard:GB

5. Various sealing materials and carbon steel options





 Model Selection

Wafer ball valve

Model No Working Pressure
/Mpa
Applicable Temperature
/℃
Applicable Medium
Q71F-16P 1.6 PTFE≤150
PPL≤250
Nitrose
Q71F-25P 2.5 Nitrose
Q71F-16Ti 1.6 Oxidizing Corrosive Medium
Q71F-25Ti 2.5 Oxidizing Corrosive Medium

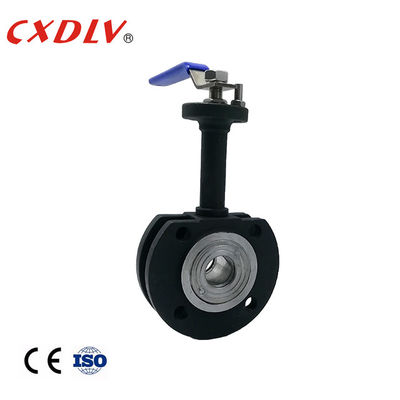

PPL Seat Flanged End Ball Valve Lever Operation With Extended Stem 1
