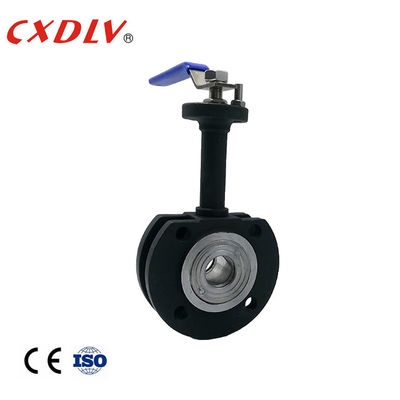

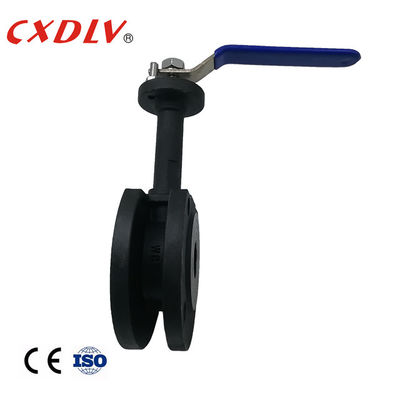

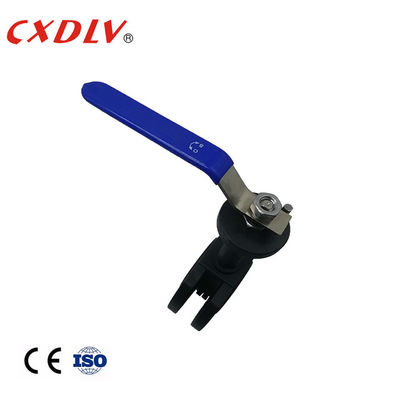

PN16 Floating Ball Valve Lever Operation Flange Connection

PN16 Floating Ball Valve Lever Operation Flange Connection
PN16 Floating Ball Valve Lever Operation Flange Connection PN16 Floating Ball Valve Lever Operation Flange Connection PN16 Floating Ball Valve Lever Operation Flange Connection

Large Image :  PN16 Floating Ball Valve Lever Operation Flange Connection

Product Details:
Place of Origin: Zhejiang,China
Brand Name: CXDLV
Certification: CE&ISO&TS
Model Number: Q71F
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Product Name: Floating Ball Valve Valve Material: CF8,CF8M,CARBON STEEL
Pressure: PN16/PN25/PN40/ANSI150/ANSI300 Operation: Lever
Connection: Flange Model: Q71F
High Light:

PN16 Floating Ball Valve

,

Lever Operation Floating Ball Valve

,

Flange Connection Floating Ball Valve

PN16 Low Pressure Italian Style Floating Ball Valve Lever Operation



 General Features

Italy Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN250

 Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 250 °C

Floating Ball:Solid/Hollow

Port:Reduced/Full

End Entry



Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.

PN16 Floating Ball Valve Lever Operation Flange Connection 0

Unit:mm
Pressure Size L D D1 D2
PN16 15 35 95 65 45
20 38 105 75 55
25 42 115 85 65
32 50 135 100 78
40 62 145 110 85
50 72 160 125 100





 Application

Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.



 Strength

1. Compared with normal ball valves, super thin type ball valves has the advantage of short structure length, in light weight, easier for installation, and save material etc, and with excellent heat insulation performance.
2. We use flexible sealing structure for the seat ring to achieve the results of high reliable sealing performance and easily for open/close operation, and a special fire-resistant protective structure is set in the valve to keep the valves operation and high sealing performance not affected under the condition of an accident fire risk.
3. Antistatic structure can be set subject to the customer’s request. We set a 90o open/close locating plate with hole, customer can lock the location as per actual condition to avoid mis-operation.



 Model Selection

Wafer ball valve

Model No Working Pressure
/Mpa
Applicable Temperature
/℃
Applicable Medium
Q71F-16P 1.6 PTFE≤150
PPL≤250
Nitrose
Q71F-25P 2.5 Nitrose
Q71F-16Ti 1.6 Oxidizing Corrosive Medium
Q71F-25Ti 2.5 Oxidizing Corrosive Medium



PN16 Floating Ball Valve Lever Operation Flange Connection 1
