| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to Different Valves Structure |
| Delivery Period: | 5~25 Work Days |
| Payment Method: | T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram |
| Supply Capacity: | 500pcs/Mon |

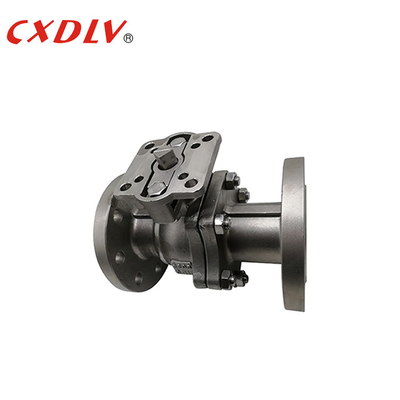

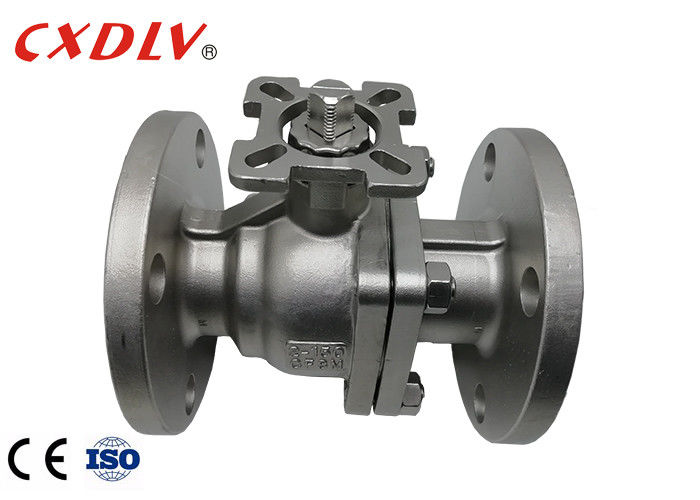

CF3M ANSI150 Stainless Steel Ball Valve 2 Pieces Full Port with ISO5211 TOP
Specifications
Investment Casting Ball Valve
Applicable Standards:
- Design and Manufacturing: ASME B16.34,API608
- Connection:ASME B16.5
- Face to Face Dimension:ASME B16.10
- Test and Inspection: API598,API6D
Size Range:
- 1/2" ~ 8" DN15 ~ DN200
Pressure Rating:
- ANSI150LB,ANSI300LB
Temperature Range:
- 20 °C ~ 185 °C
| Unti:mm | ||||||
| Pressure | Size | DN | L | D1 | D2 | Z-φd |
| ANSI150 | 1 1/2" | 38 | 165 | 98.5 | 127 | 4-19 |
| 2" | 50 | 178 | 120.5 | 152 | 4-19 | |
| 2 1/2" | 64 | 190 | 139.5 | 178 | 4-19 | |
Application
* Wide range of applications, from small to a few millimeters in diameter, large meters, from high vacuum to high pressure can be applied.
* Ball valves have been widely used in petroleum, chemical, power generation, paper, atomic energy,aviation, rocket and other departments, as well as people's daily lives.
Advantage of Ball Valve
1. Square spindle for better strength and more surface contact for hand lever
2. Wetted areas fully machined and polished
3. Optional Fire safe and Anti-Static features
4. Mirror finished ball for tight shut off and lower operating torque
5. Sturdier and better operator friendly hand lever
Model Selection
JIS 10K SCS13A Floating Full Port Flanged 2PC Ball Valve Within Solid Ball
| Standard | ASME | |||
| Pressure | API598 | |||
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
