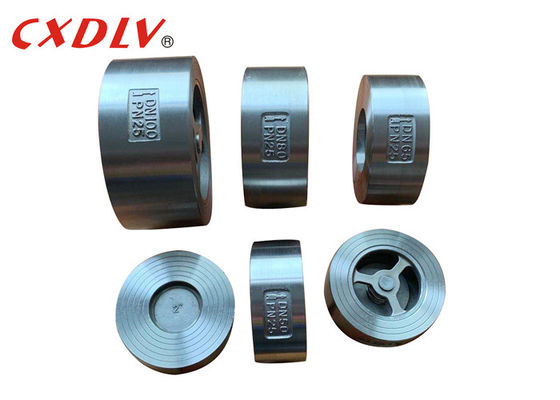

300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat

300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat
300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat 300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat

Large Image :  300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: PED
Model Number: H71H
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Suitable Plywood Cases according to different valves' structure
Delivery Time: 5~25 work days
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs per Month
Detailed Product Description
Body: Stainless Steel Seat: Metal Seat
Structure: Lift Type Port Size: DN40~DN600
Connection: Wafer Standard: ASME
Pressure: 300LB Temperature: -20℃~200℃
High Light:

Wafer Stainless Steel Check Valve

,

Disco Lift Wafer Check Valve

,

Metal Seat Wafer Check Valve

stainless ss wafer disco lift type check valve for water

               Check Valve Features

XIDELONG H71H LIFT CHECK VALVE
Model No
H71H
Type
Non-return Valve
MOQ
1 Set
Applicable Standard
ASME
Port Size
DN15~DN300
End Connection
Wafer
Working Pressure
PN16~PN64.150LB~300LB
Medium
Water,Oil,Gas,Air
Body Material
Stainless Steel
Temp.of Medium
-20℃~200℃
Trim Material
SS201/SS304
Certificate
PED,ISO
Logo Laser Marking
Available for free
Warranty
1 Year (12 Months)



               (300LB)Wafer Lift Check Valve Dimension

300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat 0

(Unit:mm)

DN A L
150LB 300LB 150LB 300LB
100 174 180 19 22
125 197 215 19 22
150 222 250 19 22
200 279 307 28 28



                  Check Valve Overview

Check Valves Lift check valves are particularly suitable for high-pressure service where velocity of flow is high. In lift Check Valves,the disc is precisely guided and fits perfectly into the dashpot.Lift Check Valves are suitable for installation in horizontal or vertical pipe-lines with upward flow.

Flow to lift Check Valves must always enter below the seat.As the flow enters, the piston or ball is raised within guides from the sear by the pressure of the upward flow. When the flow stops or reverses, the piston or ball is forced onto the seat of the valve by both the backflow and gravity.



Swing Check Valve has a flat disc that pivots or swings about a hinge pin. They are low cost, and have low head loss characteristics when fully open. But because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessoryy. They can handle liquids with solids such as wastewater.

       Features:

  • Wafer Type Check Valve weighs much less as compared to the conventional flanged end swing check valves.
  • Due to Short Overall length it can be easily installed in horizontal or in vertical pipeline without any special pipe support.
  • The seat is fitted in the body in order to prevent contact with the flow,which results in longer life of the seat.
  • Our wafer type check valve has minimum head loss due to large size of the orifice. The large orifice reduces head loose of the pump and thus saves energy.
  • Short face-to-face dimension of the valve makes it easy to install between standard gasket and line flanges

                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~45days bosed on you order quantity after deposite.



                   FAQ

1. When can I get the price?

We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.

3. How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.
