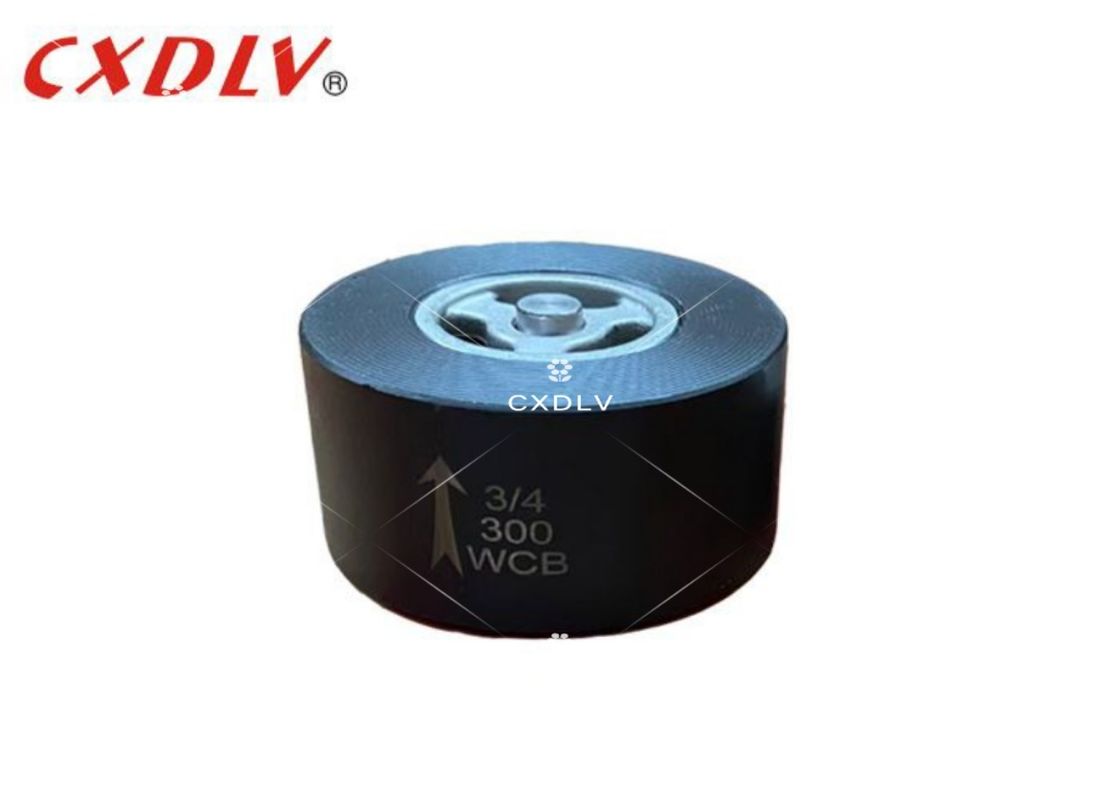

3/4" Lift Type H71H 300LB Carbon Steel Wafer Check Valve

3/4" Lift Type H71H 300LB Carbon Steel Wafer Check Valve
3/4" Lift Type H71H 300LB Carbon Steel Wafer Check Valve

Large Image :  3/4" Lift Type H71H 300LB Carbon Steel Wafer Check Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: PED
Model Number: H71H
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Suitable Plywood Cases according to different valves' structure
Delivery Time: 5~25 work days
Payment Terms: T/T, L/C, , D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000pcs per Month
Detailed Product Description
Body: Carbon Steel Disc: SS201/SS304
Seat: Metal Seat Port Size: DN40~DN600
Connection: Wafer Standard: ASME
Pressure: 300LB Temperature: -20℃~200℃
High Light:

Carbon Steel Wafer Check Valve

,

300LB Wafer Check Valve

,

3/4" Lift Wafer Check Valve

300LB Carbon Steel Wafer Check Valve 3/4" Lift Type H71H

               Check Valve Features

XIDELONG H71H LIFT CHECK VALVE
Model No
H71H
Type
One way valve
MOQ
1 Set
Applicable Standard
ASME
Port Size
3/4 inch
End Connection
Wafer
Working Pressure
300LB
Medium
Water,Oil,Gas,Air
Body Material
Carbon Steel
Temp.of Medium
-20℃~200℃
Trim Material
SS201/SS304
Certificate
PED,ISO
Logo Laser Marking
Available for free
Warranty
1 Year (12 Months)



               (300LB)Wafer Lift Check Valve Dimension

3/4" Lift Type H71H 300LB Carbon Steel Wafer Check Valve 0

(Unit:mm)

DN A L
150LB 300LB 150LB 300LB
100 174 180 19 22
125 197 215 19 22
150 222 250 19 22
200 279 307 28 28



                  Check Valve Overview

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system.Often applied on the discharge side of pumps,check valves prevent the system from draining if the pump stops and protects against backflow, which could harm the pump and/or other equipment.

Swing Check Valve has a flat disc that pivots or swings about a hinge pin. They are low cost, and have low head loss characteristics when fully open. But because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessoryy. They can handle liquids with solids such as wastewater.

       Features:

  • Wafer Type Check Valve weighs much less as compared to the conventional flanged end swing check valves.
  • Due to Short Overall length it can be easily installed in horizontal or in vertical pipeline without any special pipe support.
  • The seat is fitted in the body in order to prevent contact with the flow,which results in longer life of the seat.
  • Our wafer type check valve has minimum head loss due to large size of the orifice. The large orifice reduces head loose of the pump and thus saves energy.
  • Short face-to-face dimension of the valve makes it easy to install between standard gasket and line flanges

                  Packing&Delivery

Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.

Delivery Details:7~40days bosed on you order quantity after deposite.
