Handle Operated Bonnet Bolted Flanged Gate Valve

Handle Operated Bonnet Bolted Flanged Gate Valve
Handle Operated Bonnet Bolted Flanged Gate Valve Handle Operated Bonnet Bolted Flanged Gate Valve

Large Image :  Handle Operated Bonnet Bolted Flanged Gate Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Z41W
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 500pcs/Mon
Detailed Product Description
Body Material: CF8,CF8M,A216 WCB,CF3,CF3M Port: Full Port
Standard: ANSI/JIS/GB Size: 1/2"~10"
Medium: Water, Oil ,Gas Pressure: ANSI150/ANSI300
Wedge: CF8,CF8M,A216 WCB,CF3,CF3M
High Light:

Bonnet Bolted Flanged Gate Valve


ANSI150 Flanged Gate Valve


API 598 Handwheel Gate Valve

Stainless Steel Flanged Gate Valve Bonnet Bolted With Handle Operated


Applicable Standards:
- Design and Manufacture according to ASME B16.34,API608

- Face to face according to ASME B16.10
- End Flanges according to ASME B16.5
- Inspection and test according to API 598

Size Range:
- 1/2"~10"

Pressure Rating:
PN16/PN25/PN40, ANSI150/300,JIS10K
Temperature Range:
- -20°C~185°C


- Flexible,


- OS&Y(Rising Stem)




The Z41W stainless steel gate valves have compact structure, reasonable design, good valve rigidity, smooth channel, small flow resistance coefficient, sealing surface is made of stainless steel and hard alloy, long service life, flexible graphite packing, reliable seal, light and flexible operation. It is suitable for piping of various systems of petroleum, chemical, hydraulic and thermal power stations with working pressure of 1.6mpa ~ 20.0mpa and working temperature of -29℃~185℃.

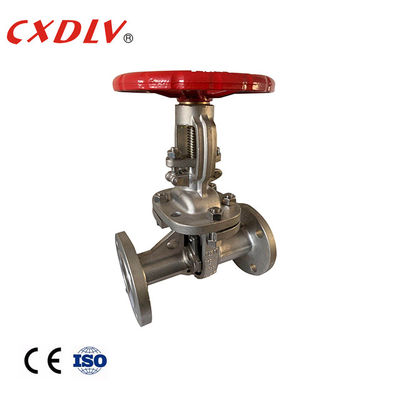

                                           Handle Operated Bonnet Bolted Flanged Gate Valve 0

SIZE L(RF) d H H1 W W1
1" 127 25 240 / 140 /
1 1/4" 140 32 300 / 180 /
1 1/2" 165 38 395 / 200 /




1)Product features: meet the requirements of advanced standards at home and abroad, reliable seal, excellent performance, beautiful shape.

2)The sealing pair is advanced and reasonable, the sealing surface of gate and valve seat is surfacing welded with hard alloy of different hardness, the sealing is reliable, high hardness, wear-resisting, high temperature resistance, corrosion resistance, good abrasion resistance and long life.

3) valve stem by conditioning and surface nitriding treatment, has a good corrosion resistance, abrasion resistance and wear resistance. It can use a variety of piping flange standards and flange sealing surface form, to meet the needs of various projects and user requirements.
4)Scope of use: this product can be used in petroleum, chemical and other industries.


 Model Selection

Gate Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN40
  Valve Material 1) CF8/SCS13/SS304     2) CF8M/SCS14/SS316     3) CF3/SS304L     4) CF3M/SS316L     5) WCB
  Operated Type Handwheel, Gear, Electric, Pneumatic, Bare shaft and etc.

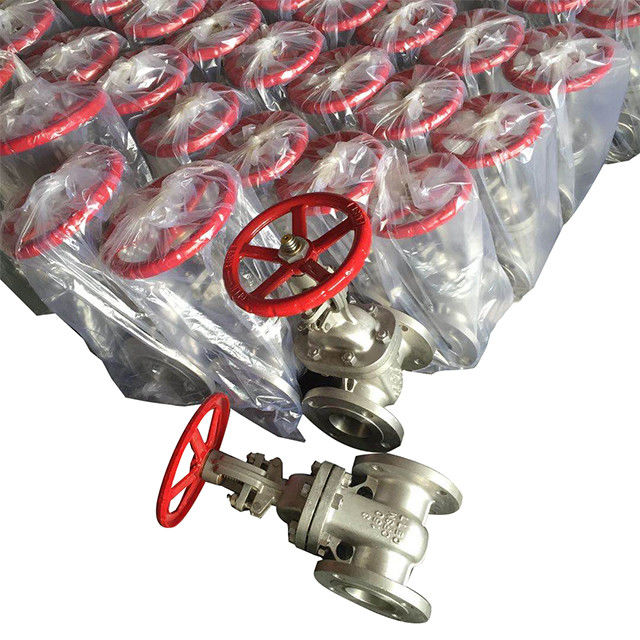

Handle Operated Bonnet Bolted Flanged Gate Valve 1
