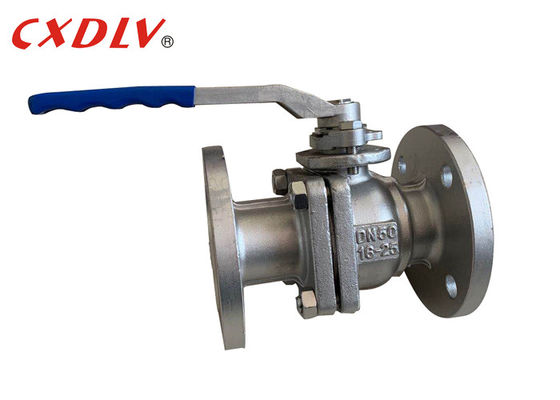

Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve

Certification
China Wenzhou Xidelong Valve Co. LTD certification
China Wenzhou Xidelong Valve Co. LTD certification
Xidelong is very much appreciated for the prompt assistance and also after sales service.

—— Mr Teo - Malaysia

“To me, Xidelong means: quality, realistic pricing, punctuality, partnership”

—— Mr Burzan - Argentina

I always feel in safe hands when I work with Xidelong.

—— Sebastian - Poland

We cooperated with Xidelong for some Government projects, the valves are well working and customer is satisfied

—— Mr Hengky - Indonesia

I'm Online Chat Now

Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve

Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve
Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve

Large Image :  Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve

Product Details:
Place of Origin: China
Brand Name: CXDLV
Certification: CE&ISO
Model Number: Q41F-16P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Suitable Plywood Cases according to different valves structure
Delivery Time: 5~25 Work Days
Payment Terms: T/T, Paypal, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 2000pcs/Mon
Detailed Product Description
Body Material: CF8,CF8M,WCB,CF3,CF3M Ball Material: CF8,CF8M
Seat Material: PTFE,RPTFE Operation: Handle
Size: 1/2"~8" Temperature: -20~200℃
Medium: Water Oil Gas
High Light:

DN50 Flanged Ball Valve

,

DIN FM Flanged Ball Valve

,

PTFE Seat Flanged Ball Valve

DIN RF/FF/FM DN50 Water Ball Valve with Flange ends 2 pieces body



 Specifications

FULL PORT MANUAL Ball Valve

Applicable Standards:
- Design and Manufacturing:DIN3357/1,2EN12516-1

- Connection:DIN2542~DIN2545

- Test and Inspection:DIN3230/3,EN12266

Size Range:
- 1/2"~8"

Pressure Rating:
- DIN RF PN16,PN25,PN40
Temperature Range:
- -20°C~200°C



Water Oil PTFE Seat DIN FM DN50 Flanged Ball Valve 0



Pressure Size L φE φB φC T f N-φh H1
DIN PN16 25 125 115 85 68 18 2 4-14 95
40 140 150 110 88 18 3 4-18 111
50 150 165 125 102 18 3 4-18 120
80 180 200 160 138 20 3 8-18 163
100 190 220 180 158 20 3 8-18 182


 Application

The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.



 About Xidelong

1. As a leading manufacturer for various kinds of Flange Industrial Valve, we have exported ball valve,

    butterfly valve, gate valve,globe valve,check valve and so on throughout the world.
2. More than 12 years' experiences in this field and CE,ISO,etc. certificated qualification and extreme

    standard let us keep very competitive in the current market.
3. Any order quantity is welcomed. There is ready stock for our regular & hot selling models.
    And In time delivery will be ensured. Otherwise please claim compensation when it is delayed.
4. Of course,you can depend on high-quality service. We'll treat every email within 2 hours.

   (Usually much faster)

5. Free samples can be sent for testing



 Model Selection

 2PC Full Port Floating Ball Valve

  Standard ANSI GB JIS DIN
  Pressure 150LB300LB PN16/PN25/PN40 10K/20K PN16/PN40
  Matreial 1) CF8/SS304     2) CF8M/SS316    3) CF3/SS304L    4) CF3M/SS316L    5) WCB     6)Duplex Stainless Steel
  Model 1) High Platform Model           2) Handle Model
