| MOQ: | 1pc |
| Price: | negotiation |
| Standard Packaging: | Suitable Plywood Cases according to different valves' structure |
| Delivery Period: | 5~60 work days |
| Payment Method: | T/T, L/C, , D/A, D/P, Western Union, MoneyGram |
| Supply Capacity: | 1000pcs per Month |

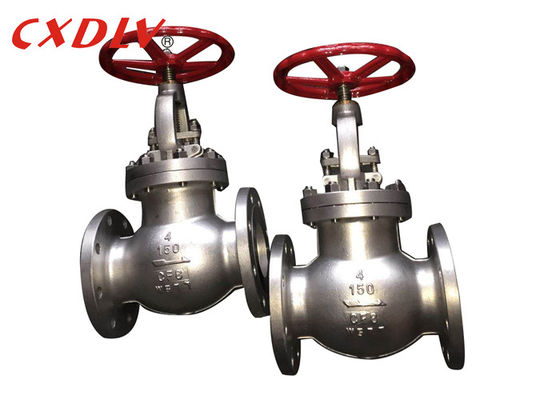

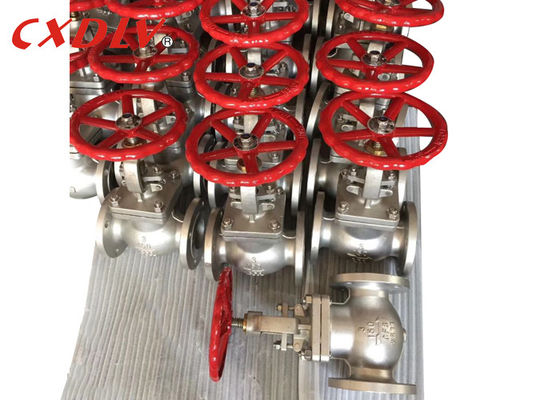

3 inch 150LB handwheel SS flange globe valve
(Unit:mm)
| Nominal Diameter | L | D | D1 | D2 | |
| DN | in | ||||
| 25 | 1" | 127 | 108 | 79.5 | 51 |
|
32 |
1-1/4" | 140 | 117 | 89 | 63 |
| 40 | 1-1/2" | 165 | 127 | 98.5 | 73 |
| 50 | 2" | 203 | 152 | 120.5 | 92 |
Globe Valve Overview
| Product Name | Flanged Globe Valve | ||
| Size | 1"~18" | Pressure | 150LB,300LB |
| MOQ | No MOQ limit | Application | Oil,Gas,Water |
| Temperature | Medium Temperature | Package | Pywood Case |
| Material | CF8,CF8M,CF3,CF3M,WCB... | ||
| OEM | Customized welcomed(casting logo, handwheel collor, nameplate) | ||
| Delivery Time | For Sample Order, 3days after payment. For offical order,25days after deposit | ||
Globe Valve Features
Globe valve is a type of valve used for regulating flow in a pinpeline, consisting of a movable disc-type element and a stationaryring seat in a generally spherical body. Globe Valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug can be screwed in to close(or shut) the valve. The plug is also called a disc. In globe valves, the plug is connected to a stem which is operated by screw action in manual valves. Typically automated valves use sliding stems. Automed globe valves have a smooth stem rather than threaded and are opened and closed by an actuator assembly. When a globe valve is manuallly operated, the stem is turned by a handwheel.handwheel
Packing&Delivery
Packing Details:We choose suitable plywood cases according to different valves and arrange skilled workers to pack in case of bruise.Long term cooperated forwarder will book space,clear customs and transport for us without delay.There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details:7~40days bosed on you order quantity after deposite.
Reference
| Floating Ball Valve | Trunnion Ball Valve | Butterfly Valve | Check Valve | Gate Valve | Sight Glass | |
| Structure | Full Port | Full Port | Double Eccentric | Flange,Wafer | Metal Seat | Double Windows |
| Size | DN15~DN200 | DN200~DN600 | DN50~DN500 | DN15~DN700 | DN25~DN450 | DN15~DN200 |
| Material | CF8,CF8M,CF3.CF3M,WCB,Duplex Stainless Steel... | |||||
Globe Valve Dimension
